5 Series E39 M5 (S62) SAL

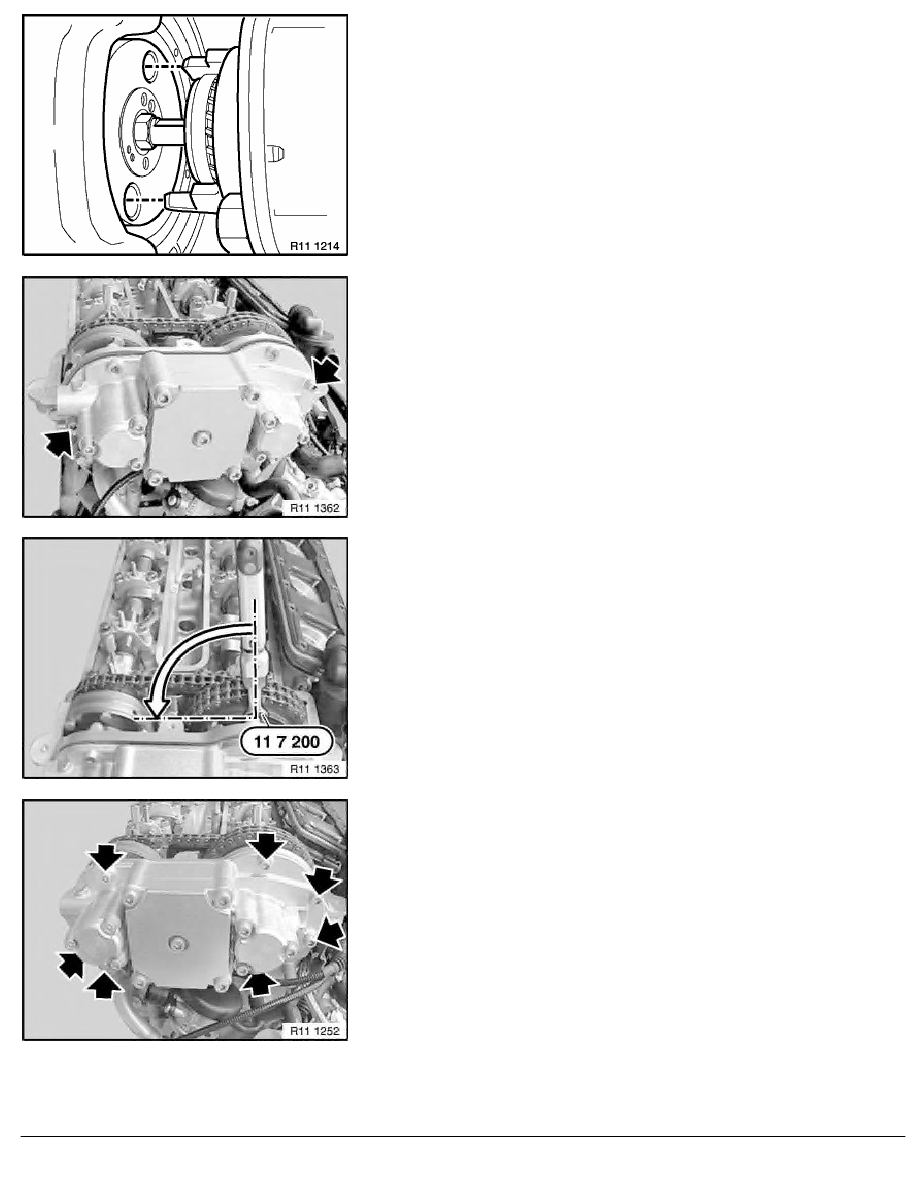

Intake side:
Align radial piston pump to driver on spline hub.
Note:
Picture shows a schematic representation.
Push on VANOS adjustment unit only until O-rings of VANOS
adjustment unit rest against timing case cover.
Caution!
If this position is not reached, realign position of radial piston
pump to driver.
Insert one bolt each on left and right and initially tighten without
play. The bolts serve to locate the VANOS adjustment unit in
position. Do "not" tighten down screws yet. VANOS adjustment
unit must "not" rest against timing case cover.
Note:
To tighten down screws on VANOS gear: Use special tool
11 7 200 .
Tighten down six accessible bolts (three on exhaust side and
three on inlet side) on VANOS gear to 10 Nm.
Then slacken all six screws again by a 1/4 turn.
Install all bolts. Alternately tighten down bolts in 1/2 turn
increments carefully and evenly until VANOS adjustment unit rests
against timing case cover.
Tighten down all bolts.
RA Removing and installing/replacing toothed shafts of VANOS gear on right (S62)
