Catera V6-3.0L VIN R (1997)
Front Door Panel: Service and Repair
Door Trim Panel Replacement
REMOVAL PROCEDURE

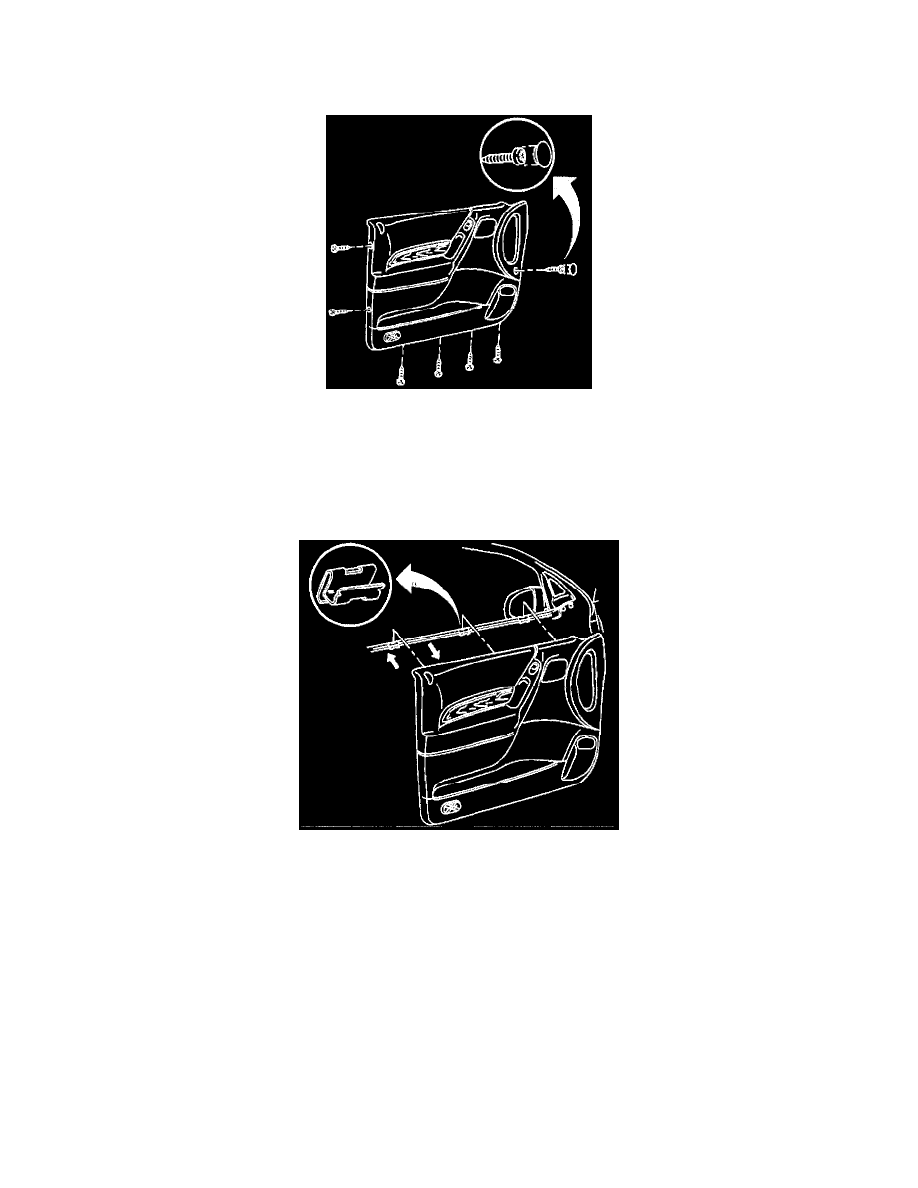

Trim Panel Replacement (Side Front Door): Removal Procedure
1. Disable SIR, if equipped with Inflatable restraint system.
Remove the assist handle and cover.
3. Remove the power lock switch.
4. Remove the courtesy lamp.
5. Remove the trim panel screws.
Trim Panel Replacement (Side Front Door): Removal Procedure
6. Lift the trim panel upwards in order to release from the clips.
INSTALLATION PROCEDURE
