Catera V6-3.0L VIN R (1997)

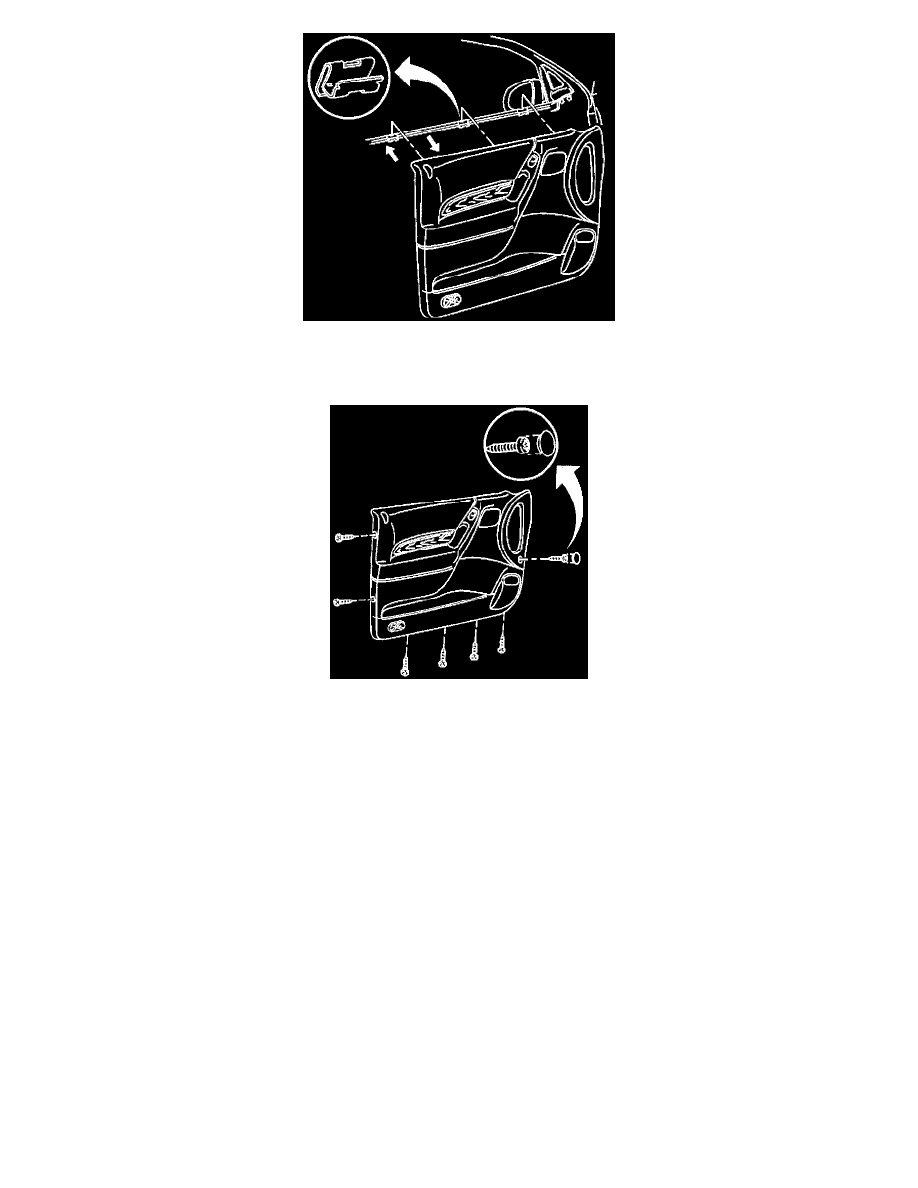

Trim Panel Replacement (Side Front Door): Installation Procedure
1. Install the trim panel on the clips.
Trim Panel Replacement (Side Front Door): Installation Procedure
2. Install the trim panel screws.
3. Install the courtesy lamp.
4. Install the power lock switch.
5. Install the assist handle and cover. Refer to Front Door Assist Handle and Molding Replacement.
6. Enable SIR, if equipped with Inflatable restraint system.
