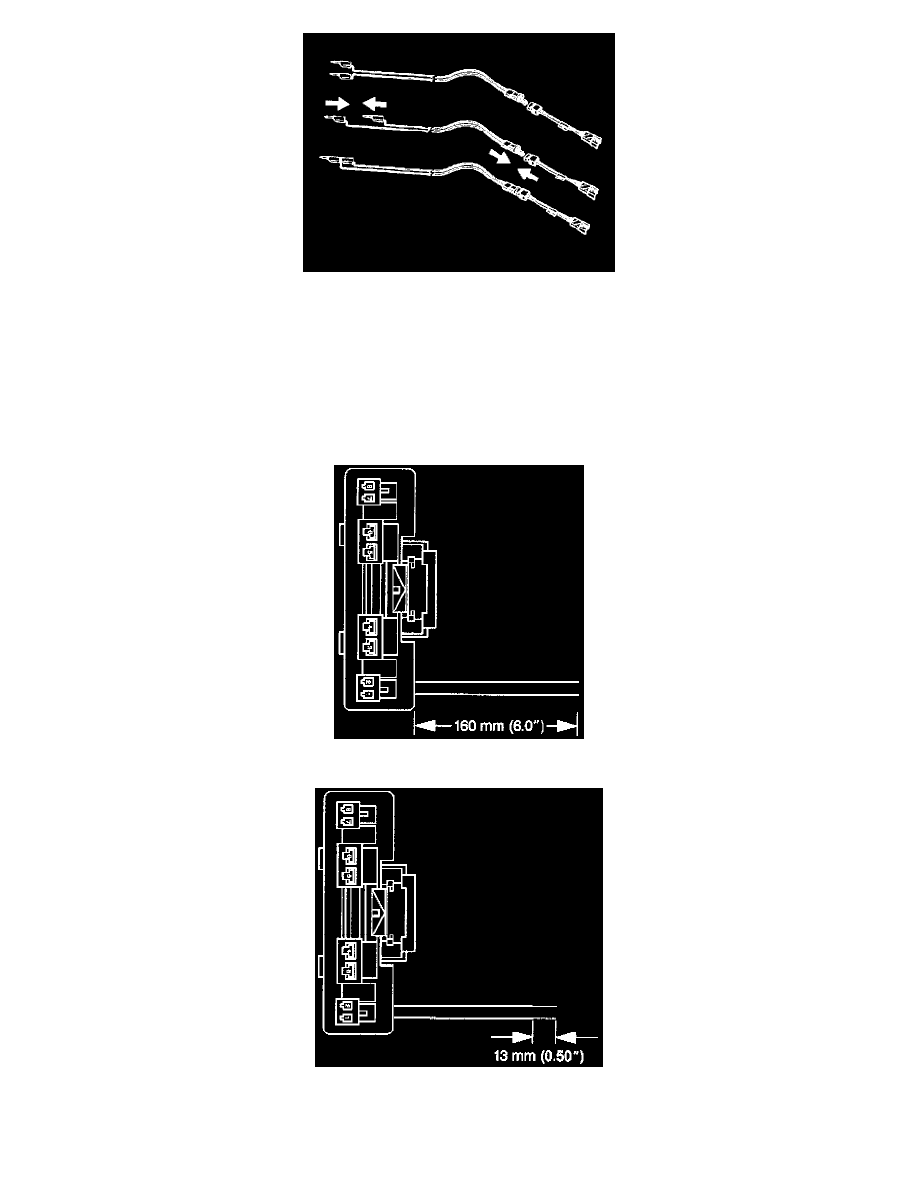

22. Disconnect the pigtail adapter from the seat belt pretensioner as soon as possible.

23. Inspect the pigtail adapter and the SIR deployment harness. Replace as needed.

24. Dispose of the deployed seat belt pretensioner through normal refuse channels.

25. Wash hands with a mild soap.

Inside Vehicle

Description

Description

Pretensioner Deployment Inside Vehicle (Vehicle Scrapping Procedure) Deploy the inflator modules outside of the vehicle and deploy the pretensioners
