Catera V6-3.0L VIN R (1997)
14. Firmly seat the adapter into the seat belt pretensioner connector.
15. Clear the area of people.
CAUTION: When you are deploying a pretensioner for disposal, perform the deployment procedures in the order listed. Failure to follow the
procedures in the order listed may result in personal injury.

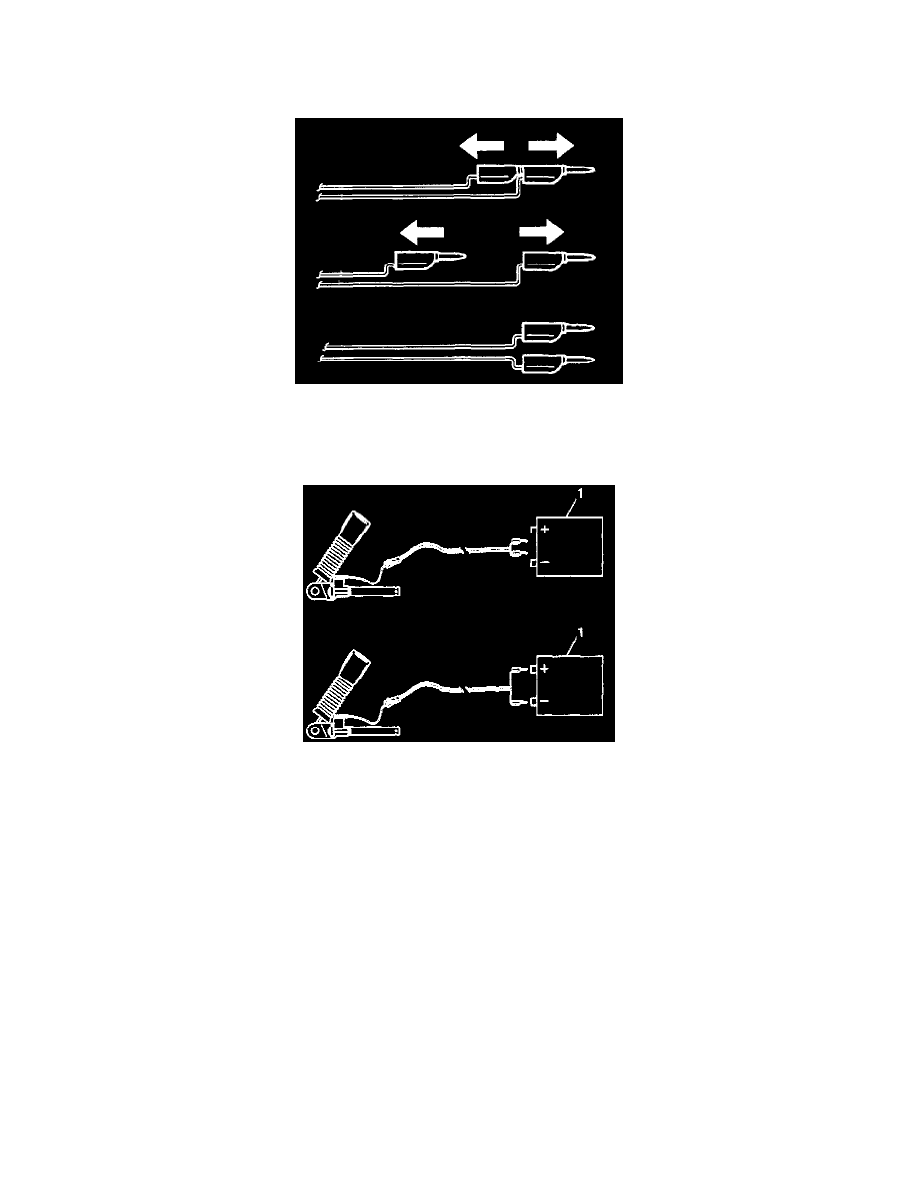

16. Separate the two banana plugs on the SIR deployment harness.
Description
IMPORTANT: The rapid gas expansion involved with deploying a pretensioner is very loud. Notify all the people in the immediate area that you intend
to deploy the seat belt pretensioner.
17. Connect the SIR deployment harness wires to the power source.
18. Disconnect the SIR deployment harness from the power source after the pretensioner deploys.
19. Seat one banana plug into the other in order to short the deployment harness leads.
20. If the pretensioner did not deploy, disconnect the adapter and discontinue the procedure. Contact the Technical Assistance Group. Otherwise,
proceed to the following steps.
21. Put on a pair of shop gloves.
