Timing Component Alignment Marks: Locations

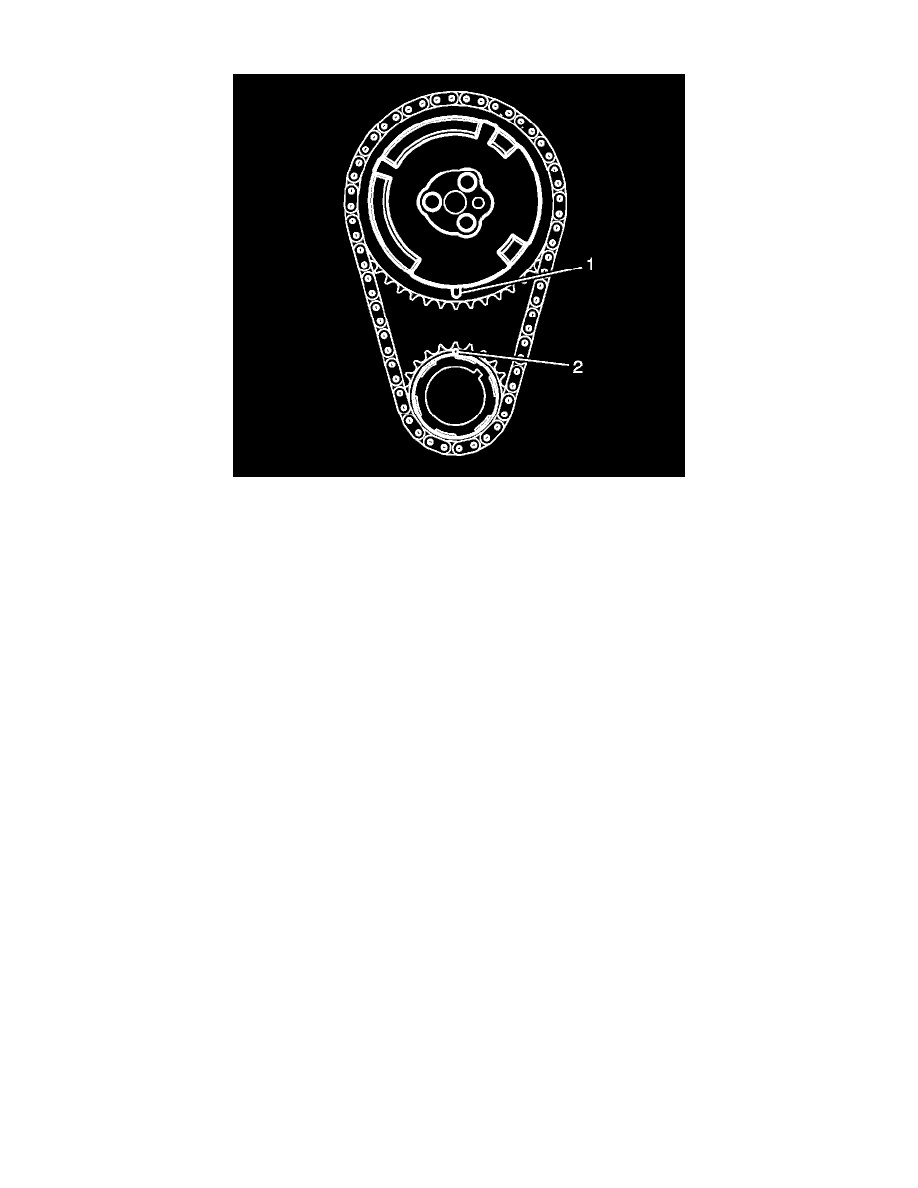

Inspect the sprockets for proper alignment. The mark on the camshaft sprocket (1) should be located in the 6 o'clock position and the mark on the
crankshaft sprocket (2) should be located in the 12 o'clock position.
