Seat Heater: Diagrams

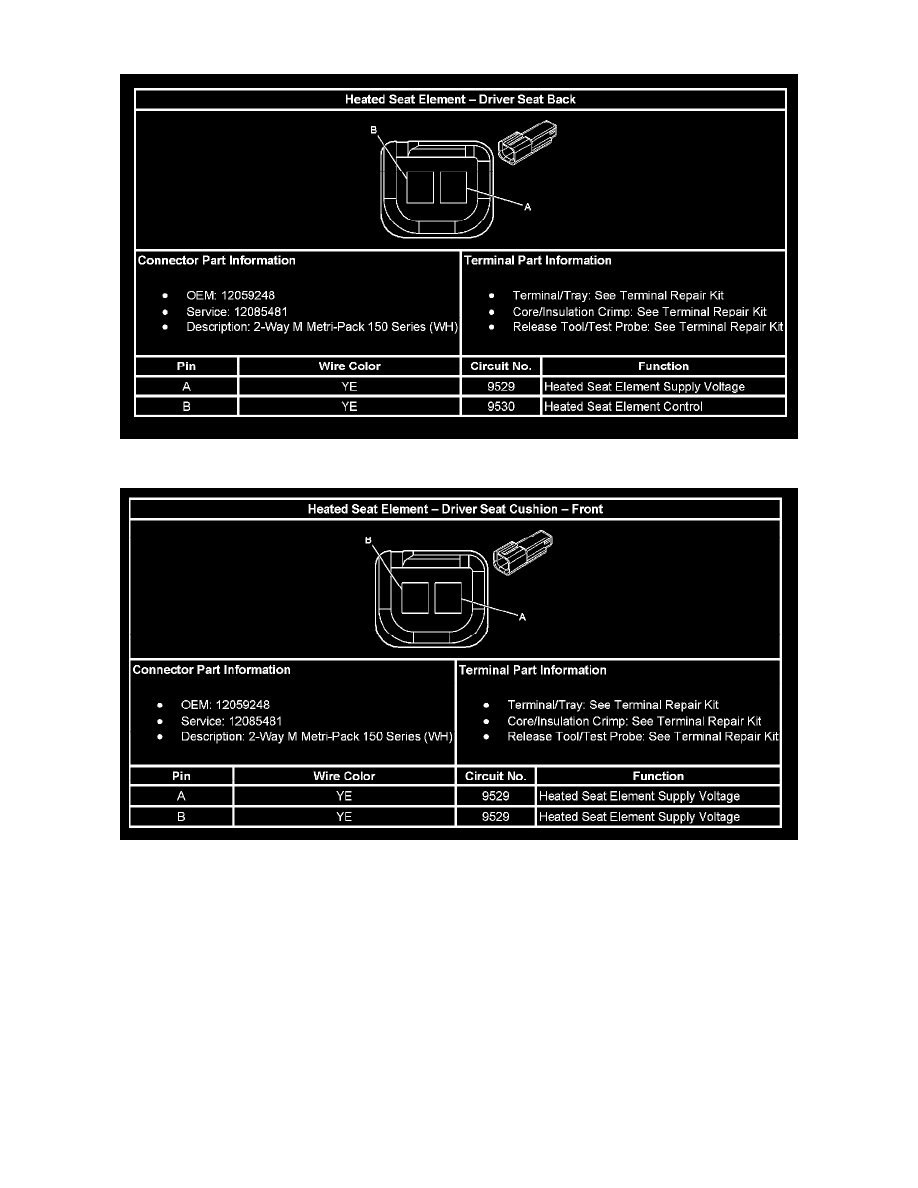

Heated Seat Element - Driver Seat Back
Heated Seat Element - Driver Seat Cushion - Front
Pinch or Ctrl + scroll to zoom. Double-tap to reset.
