Power Seat Switch: Locations
Power Seat Component Views

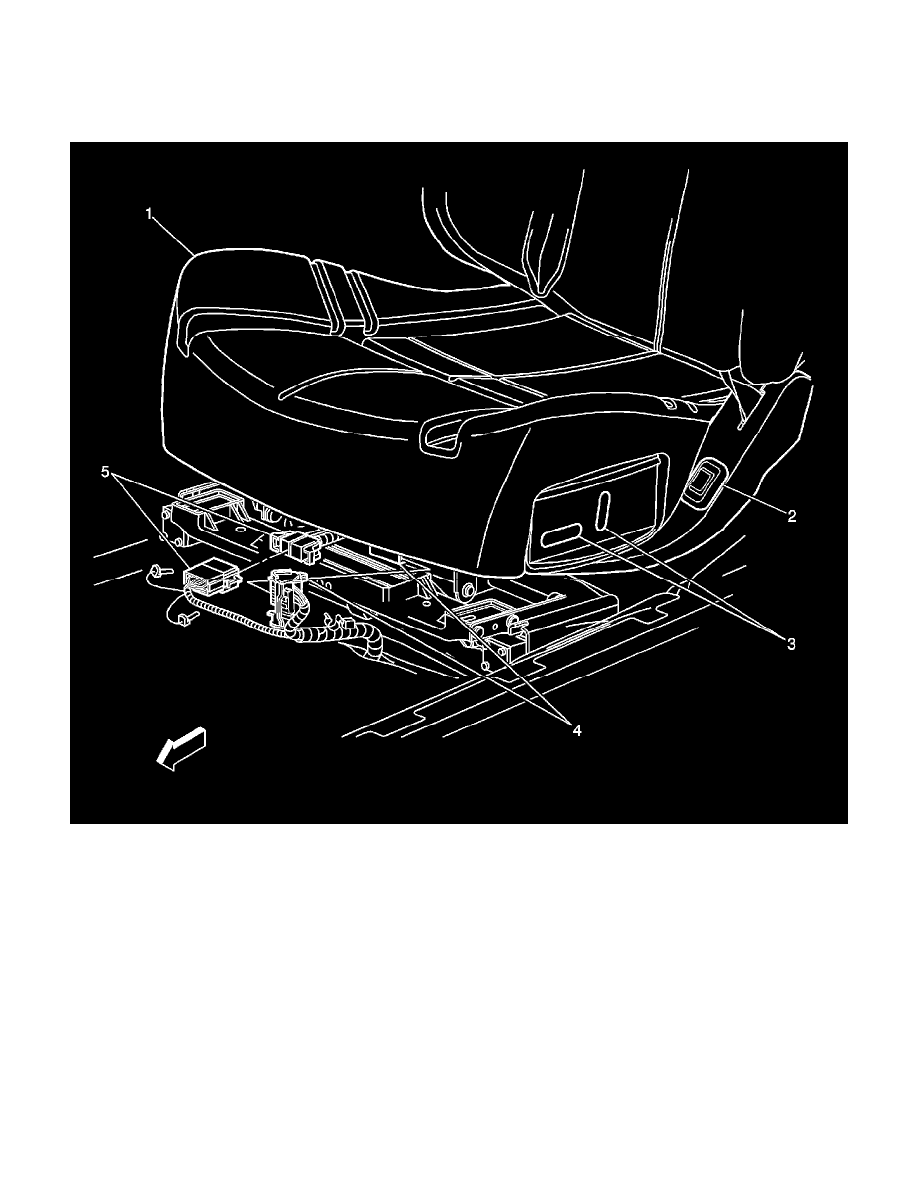

Power Seat Switches and Inline Connectors
1 - Driver Seat Cushion
2 - Lumbar Adjuster Switch - Driver (AL2) (Passenger Similar)
3 - Seat Adjuster Switch - Driver (Passenger Similar)
4 - C300 (C307 Similar)
5 - C301 (C306 Similar)
Power Lumbar Components (AL2)
