CTS V8-6.0L (2007)

Page 1
background image

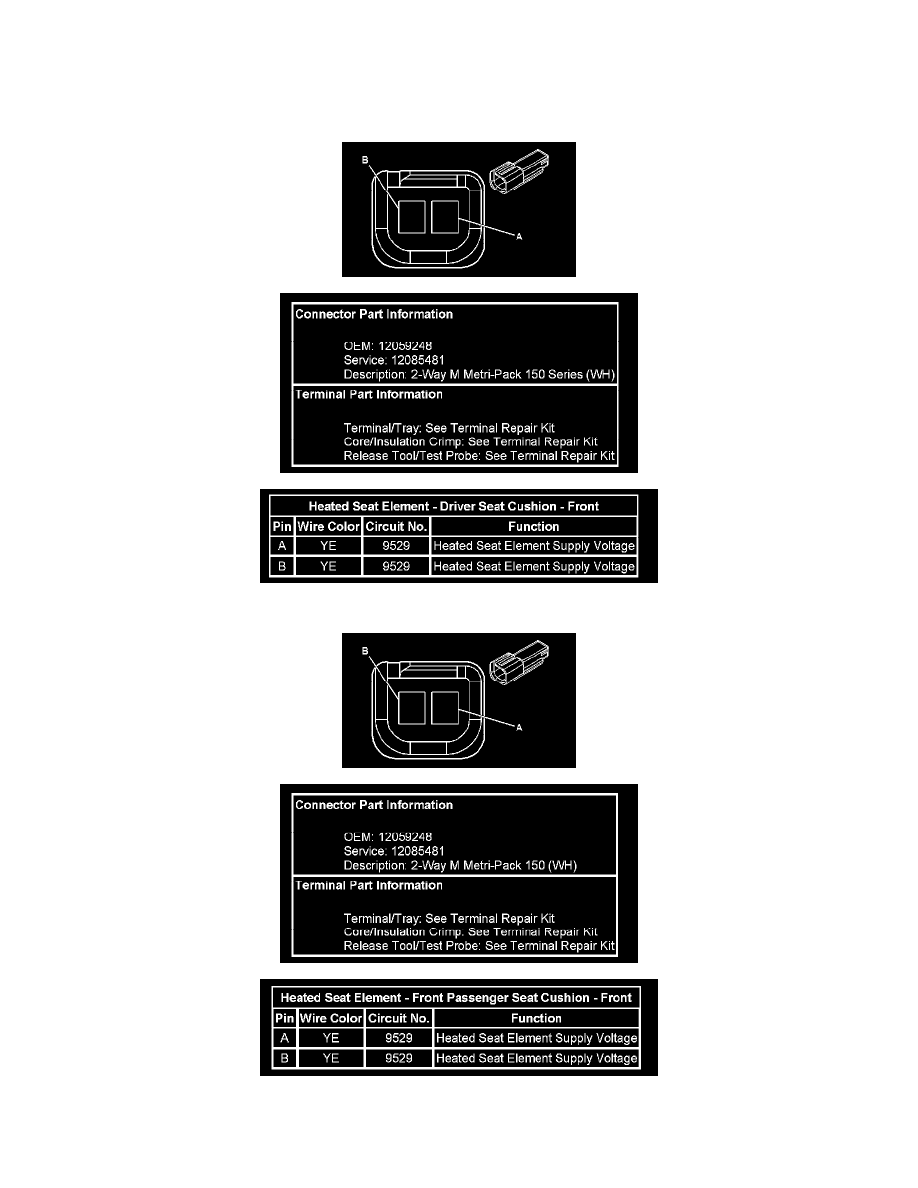

Seat Cushion: Diagrams

Heated/Cooled Seat Connector End Views

Heated Seat Element - Driver Seat Cushion - Front

Heated Seat Element - Front Passenger Seat Cushion - Front
