Blower Motor: Locations
- Make
- Cadillac
- Model
- CTS
- Engine
- V8-6.0L
- Year
- 2007
- Section
- Blower Motor › Locations
Heating and Air ConditioningLocations · page 1 of 2
Blower Motor: Locations
HVAC Component Views

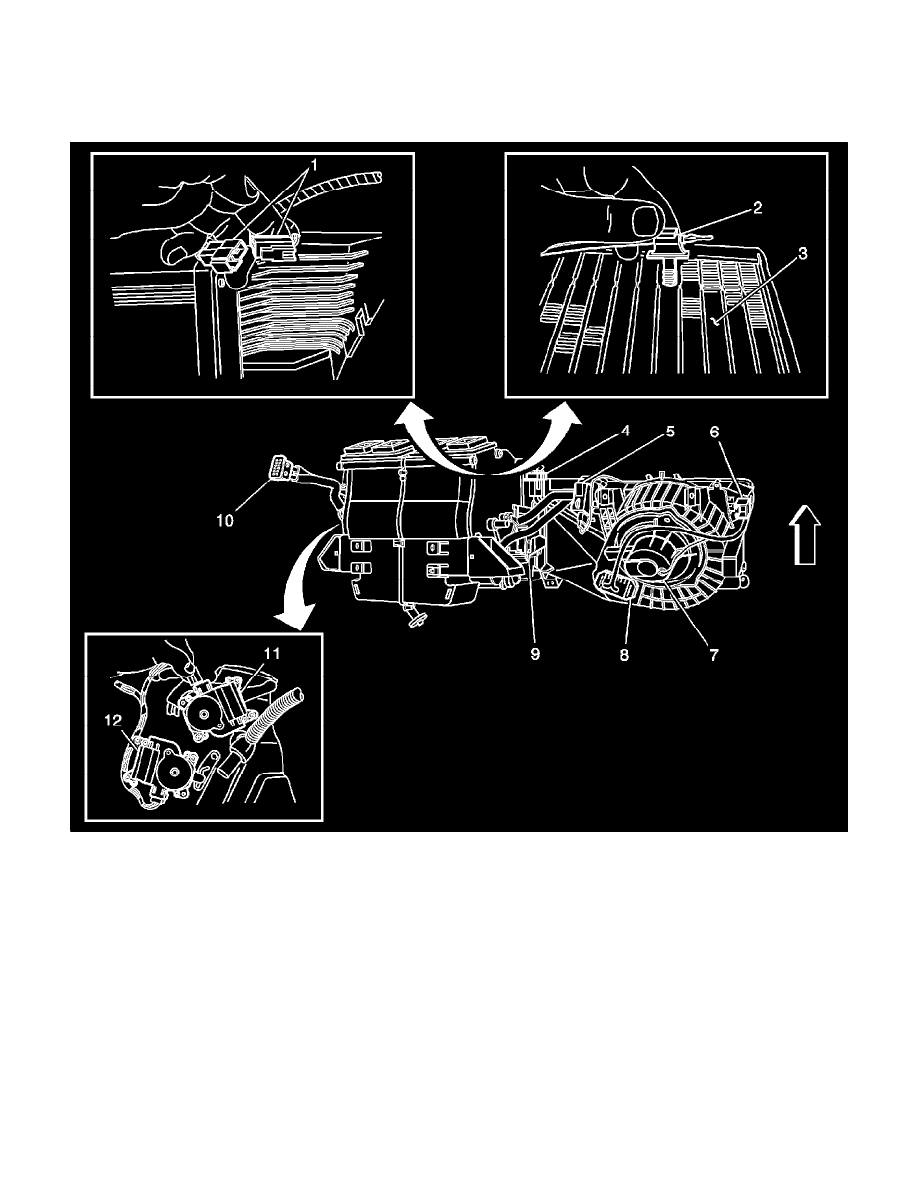

HVAC Module Components
1 - Evaporator Temperature Sensor Connector
2 - Evaporator Temperature Sensor
3 - Evaporator Core
4 - C321
5 - Recirculation Actuator
6 - C323
7 - Blower Motor
8 - Blower Motor Control Processor
9 - Air Temperature Actuator - Passenger
10 - Air Temperature Sensor - Inside
11 - Mode Actuator
12 - Air Temperature Actuator - Driver
