Courtesy Lamp: Locations

Make

Cadillac

Model

CTS

Engine

V8-6.0L

Year

2007

Section

Courtesy Lamp › Locations

Lighting and HornsLocations

Courtesy Lamp: Locations

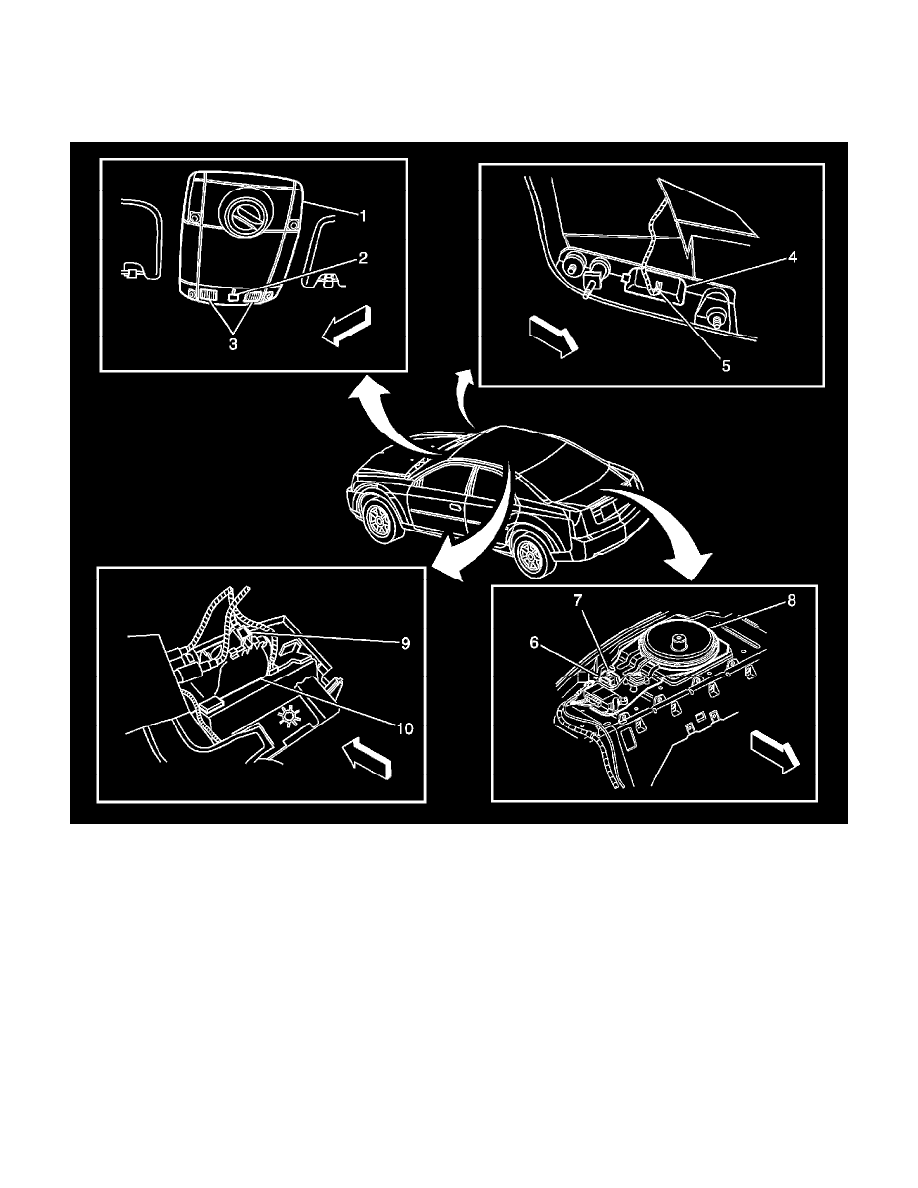

Lighting Systems Component Views

Interior Lighting Components (2 of 2)

1 - Overhead Console
2 - I/P Dimmer Switch and Courtesy Lamp Switch
3 - Courtesy/Reading Lamps Front Right & Left
4 - Courtesy Lamp - Right Front Door (LF similar)
5 - Courtesy Lamp - Right Front Door Connector
6 - Courtesy Lamp - Rear Compartment Connector
7 - Courtesy Lamp - Rear Compartment
8 - Speaker - Rear Subwoofer
9 - Dome Lamp - Rear Connector
10 - Dome Lamp - Rear
