Ignition Coil: Diagrams

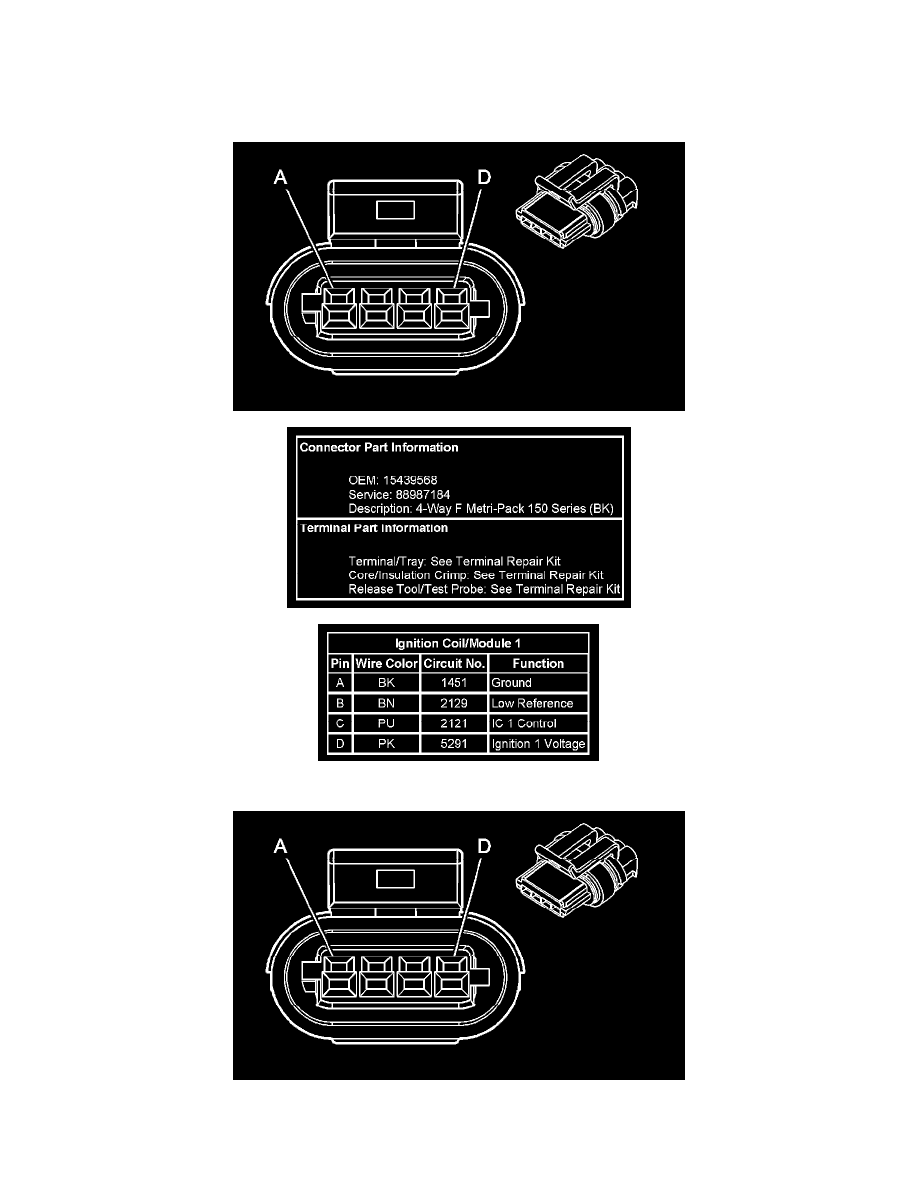

Engine Controls Connector End Views

Ignition Coil/Module 1

Ignition Coil/Module 2

Powertrain Management
Ignition System
Ignition Coil
Component Information
Diagrams
