Starter Solenoid: Locations

Make

Cadillac

Model

CTS

Engine

V8-6.0L

Year

2007

Section

Starting System › Starter Solenoid › Locations

Starting and ChargingLocations · page 1 of 3

Starter Solenoid: Locations

Engine Electrical Component Views

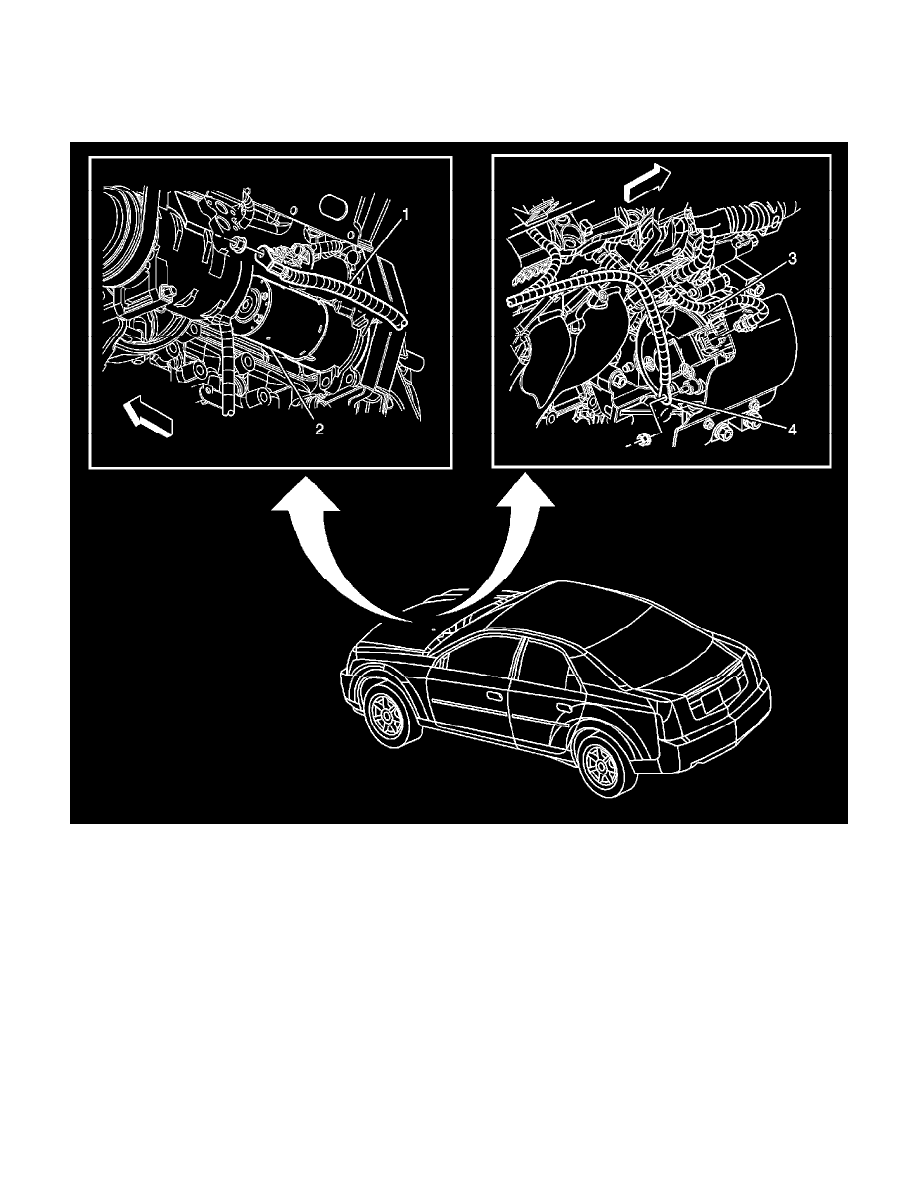

Battery Positive Cable - 2.8L/ 3.6L (LP1/LY7)

1 - Battery Positive Cable Connection to Starter
2 - Starter Solenoid
3 - Generator
4 - Battery Positive Cable Connection to Generator

Battery Positive Cable - 6.0L (LS2)
