Windshield Washer Pump: Locations
- Make
- Cadillac
- Model
- CTS
- Engine
- V8-6.0L
- Year
- 2007
- Section
- Windshield Washer Pump › Locations
Wiper and Washer SystemsLocations · page 1 of 2
Windshield Washer Pump: Locations
Wiper/Washer Component Views

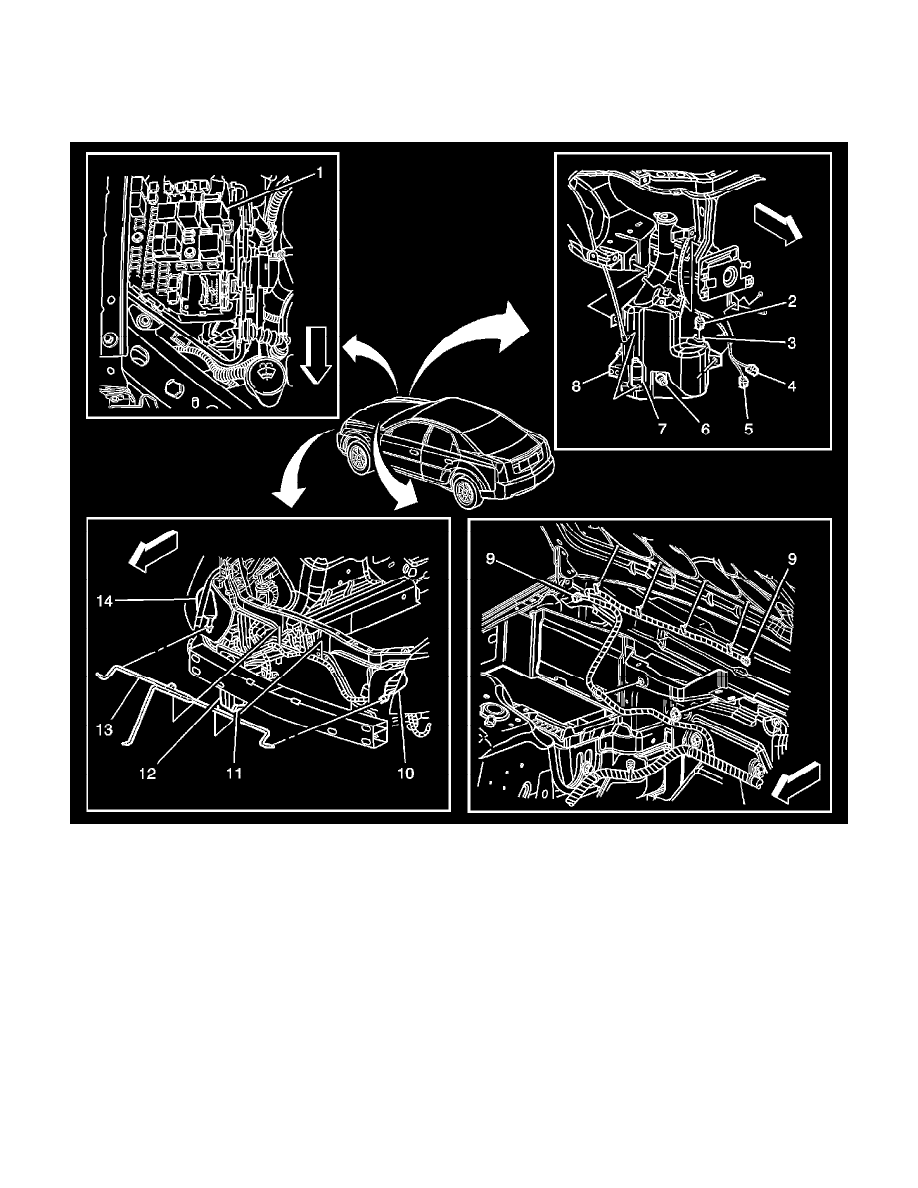

Washer Fluid Subsystem Components
1 - Headlamp Washer Relay (CE4)
2 - Headlamp Washer Fluid Pump Connector (CE4)
3 - Headlamp Washer Fluid Pump (CE4)
4 - Washer Fluid Level Switch Connector
5 - Windshield Washer Fluid Pump Connector
6 - Washer Fluid Level Switch
7 - Windshield Washer Fluid Pump
8 - Washer Fluid Reservoir
9 - Heated Washer Nozzles
10 - Headlamp Washer Nozzle - Left (CE4)
11 - Headlamp Washer Fluid Pump (CE4)
12 - Washer Fluid Reservoir
13 - Headlamp Washer Fluid Hose (CE4)
14 - Headlamp Washer Nozzle - Right (CE4)
