Heater Hose: Diagrams
- Make
- Cadillac
- Model
- DeVille
- Engine
- V8-273 4.5L
- Year
- 1989
- Section
- Heater Hose › Diagrams
Heating and Air ConditioningDiagrams

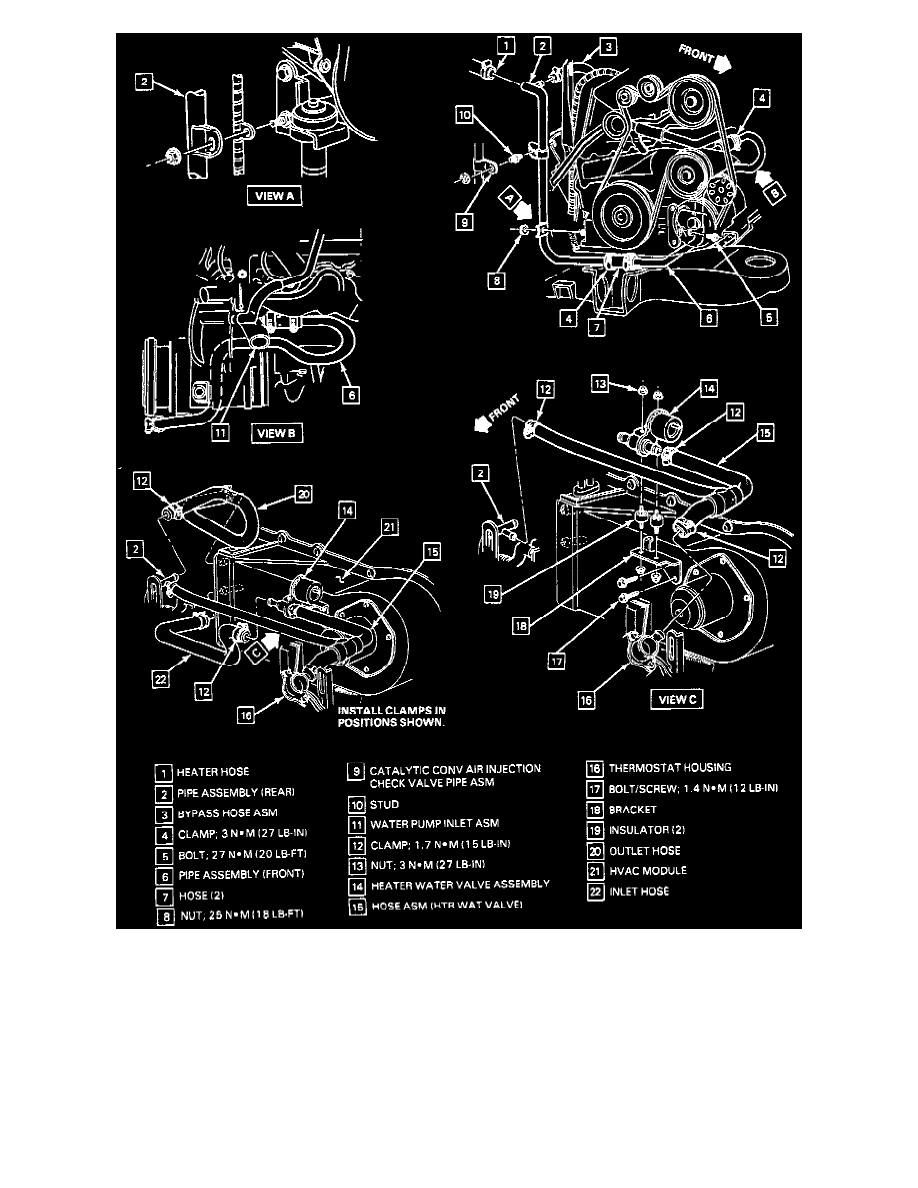

Heater Water Pipes, Hoses And Valve
