Relay Box|Diagrams > < Relay Center: Fuses 1, 2, 3|Page 7166

DeVille V8-300 4.9L (1993)

Page 1
background image

Relay Box: Locations

RELAY CENTER

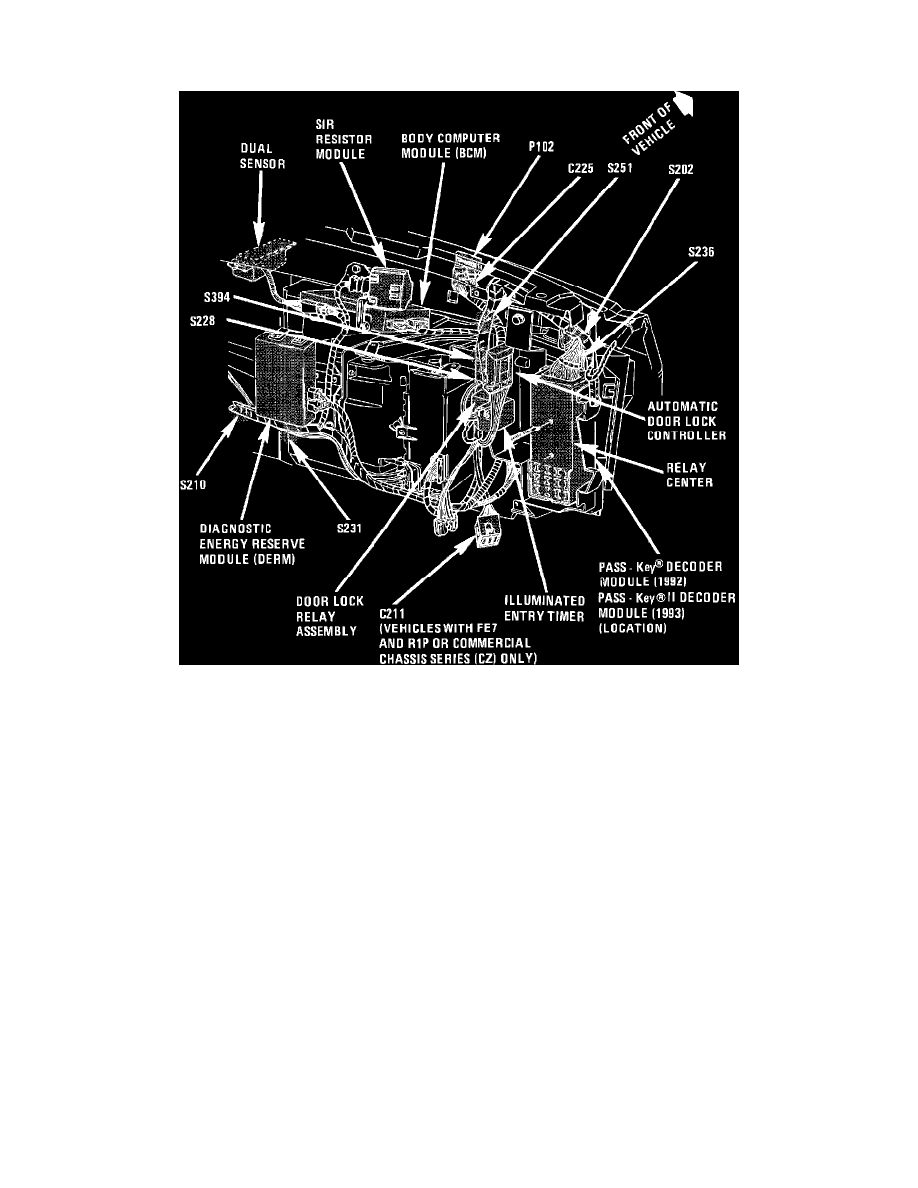

Component Location View. Behind RH Side of I/P

The Relay Center is located behind RH side of Instrument Panel (I/P), at top of shroud.

Relay Box|Diagrams > < Relay Center: Fuses 1, 2, 3|Page 7166
