Escalade AWD V8-6.2L (2009)
Seat Bladder: Locations
Passenger Compartment/Roof Component Views

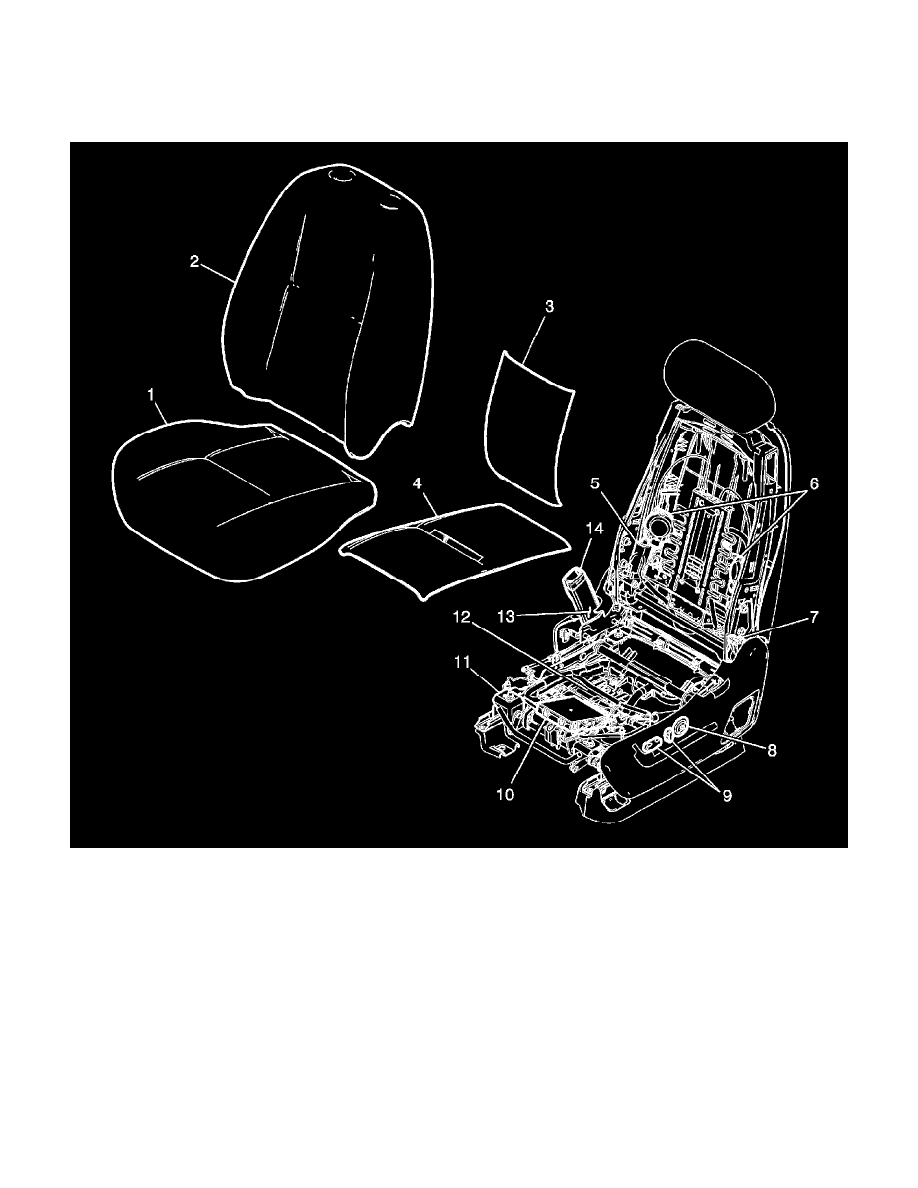

Driver Seat Components (without KB6)
1 - Driver Seat Cushion
2 - Driver Seat Back Cushion
3 - Heated Seat Element -Driver Back (AN3 - KB6)
4 - Heated Seat Element -Driver Cushion (AN3 - KB6)
5 - Seat Recline Motor -Driver (AN3)
6 - Seat Lumbar Adjuster Assembly -Driver (AN3)
7 - Seat Recline Postion Sensor -Driver (AN3)
8 - Seat Lumbar Switch -Driver (AN3)
9 - Seat Adjuster Switch -Driver
10 - Memory Seat Module (MSM) (AN3)
11 - Inflatable Restraint Seat Position Sensor -Driver
12 - Seat Adjuster Motor Assembly -Driver (except HP2)
13 - Inflatable Restraint Seat Belt Tension Sensor -Driver
14 - Seat Belt Switch -Driver
Passenger Seat Components (without KB6)
