Cadillac Escalade AWD V8-6.2L (2009)17 · Lighting and Horns
17 · Electrical

Courtesy Lamp: Diagrams

Make
Cadillac
Model
Escalade AWD
Engine
V8-6.2L
Year
2009
Section
Courtesy Lamp › Diagrams
Lighting and HornsDiagrams · page 1 of 3
background image

Courtesy Lamp: Diagrams

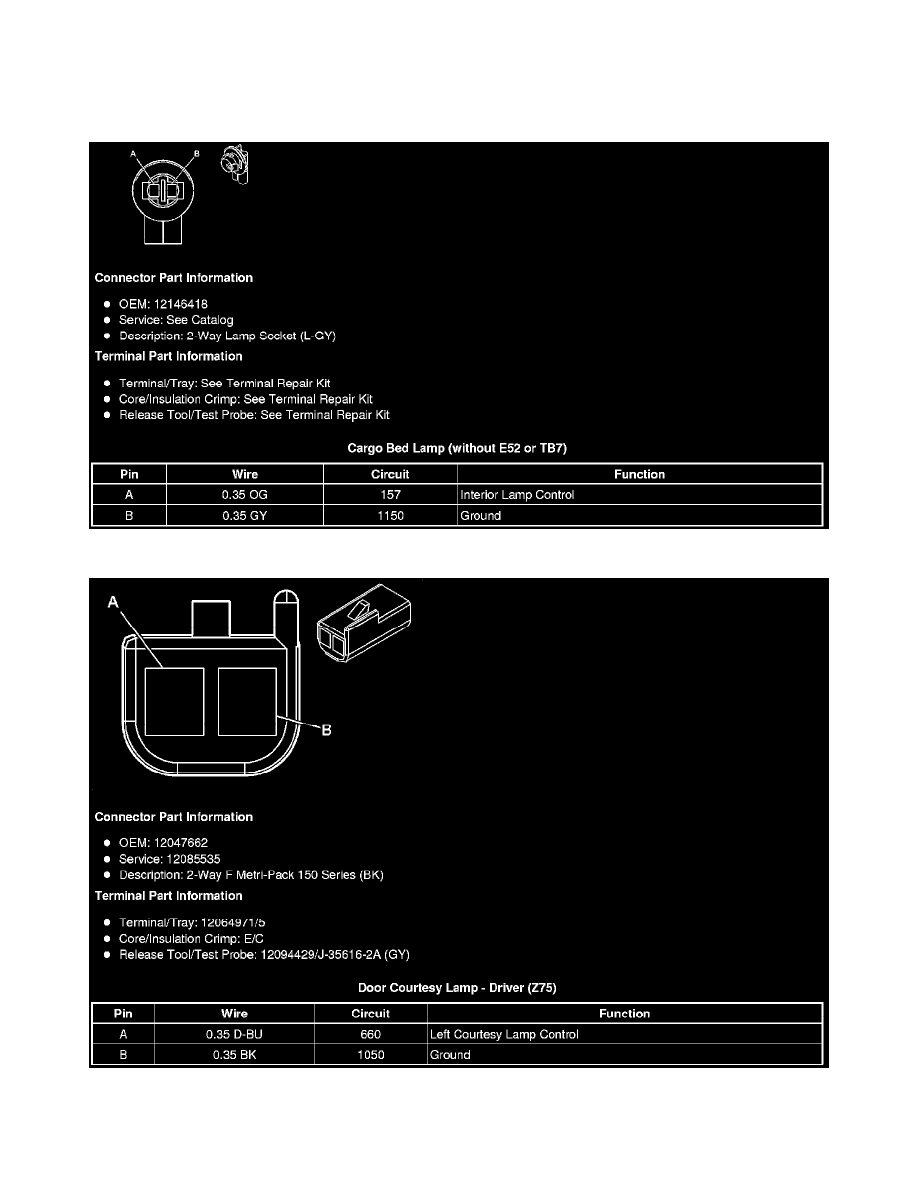

Component Connector End Views

Cargo Bed Lamp (without E52 or TB7)

Door Courtesy Lamp - Driver (Z75)

Door Courtesy Lamp - Passenger (Z75)
