Timing Component Alignment Marks: Locations

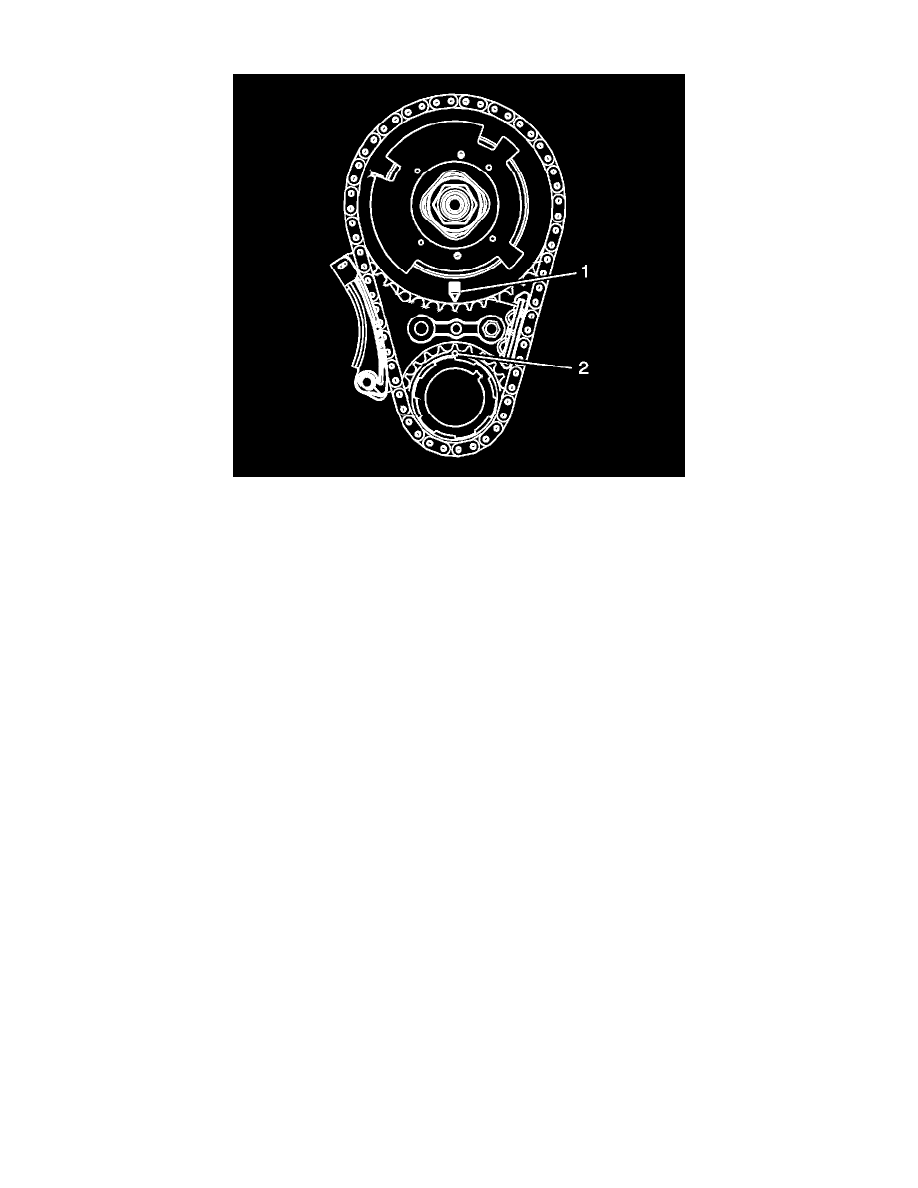

Inspect the sprockets for proper alignment. The mark on the CMP actuator sprocket (1) should be located in the 6 o'clock position and the mark on
the crankshaft sprocket (2) should be located in the 12 o'clock position.
