Flex Plate: Specifications

Make

Cadillac

Model

Escalade RWD

Engine

V8-6.0L Hybrid

Year

2010

Section

Flex Plate › Specifications

Transmission and DrivetrainSpecifications · page 1 of 3

Flex Plate: Specifications

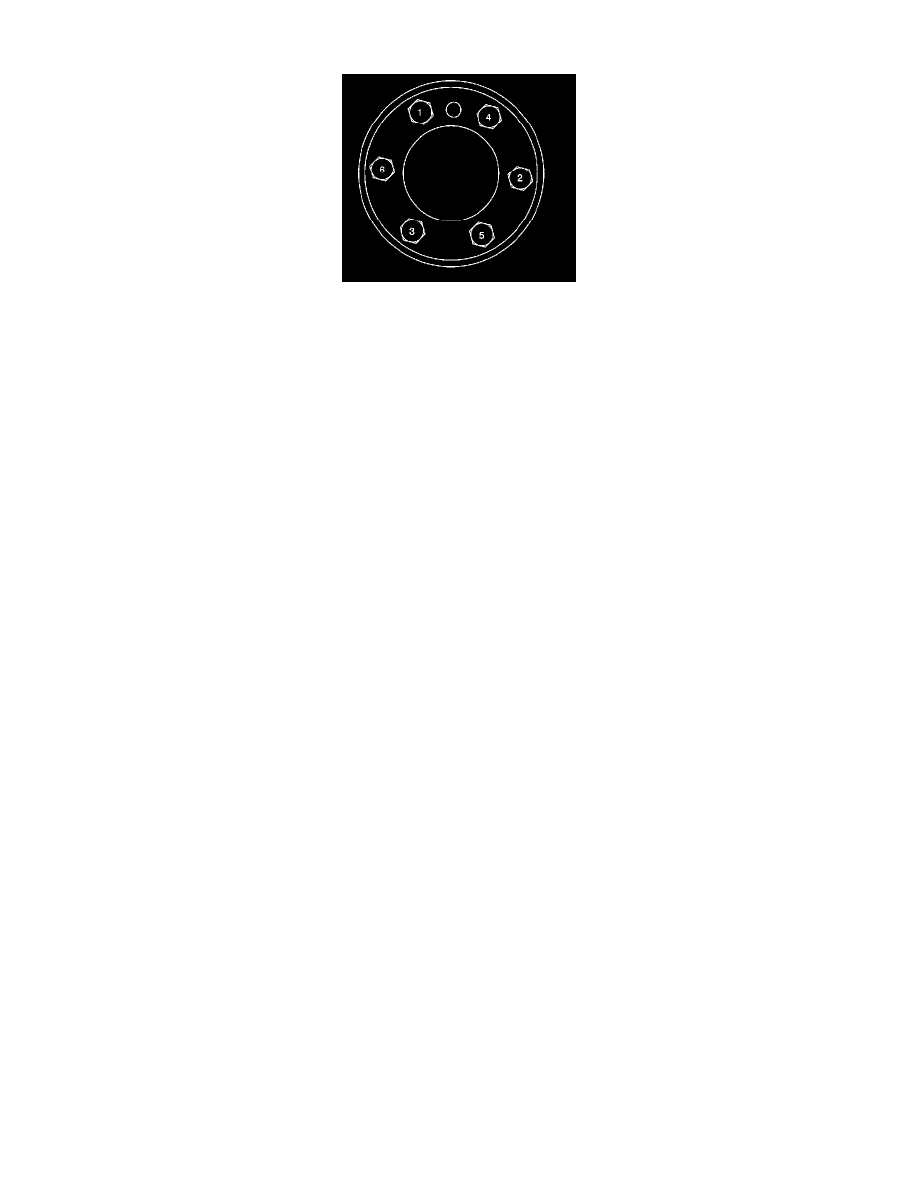

Tighten the bolts (1-6) a first pass in sequence to 20 Nm (15 lb ft).
Tighten the bolts (1-6) a second pass in sequence to 50 Nm (37 lb ft).
Tighten the bolts (1-6) a final pass in sequence to 100 Nm (74 lb ft).
