Power and Ground DistributionLocations

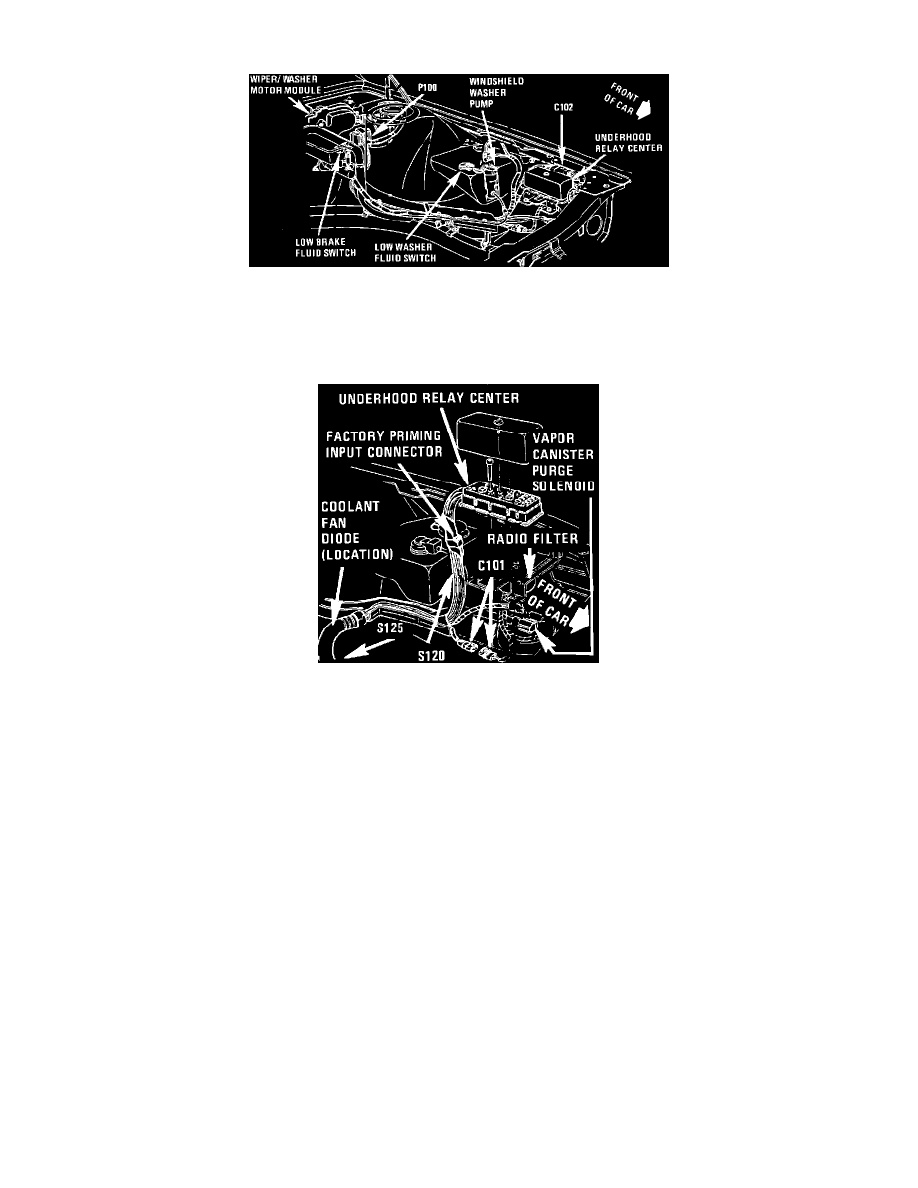

Relay Box: Locations
LH Side Of Engine Compartment.
LH Front Of Engine Compartment, Behind Headlights
Applicable to: 1989 Eldorado & Seville
LH Side Of Engine Compartment.
LH Front Of Engine Compartment, Behind Headlights
Applicable to: Eldorado & Seville
