Wiper Switch: Locations
Instrument Panel/Center Console Component Views

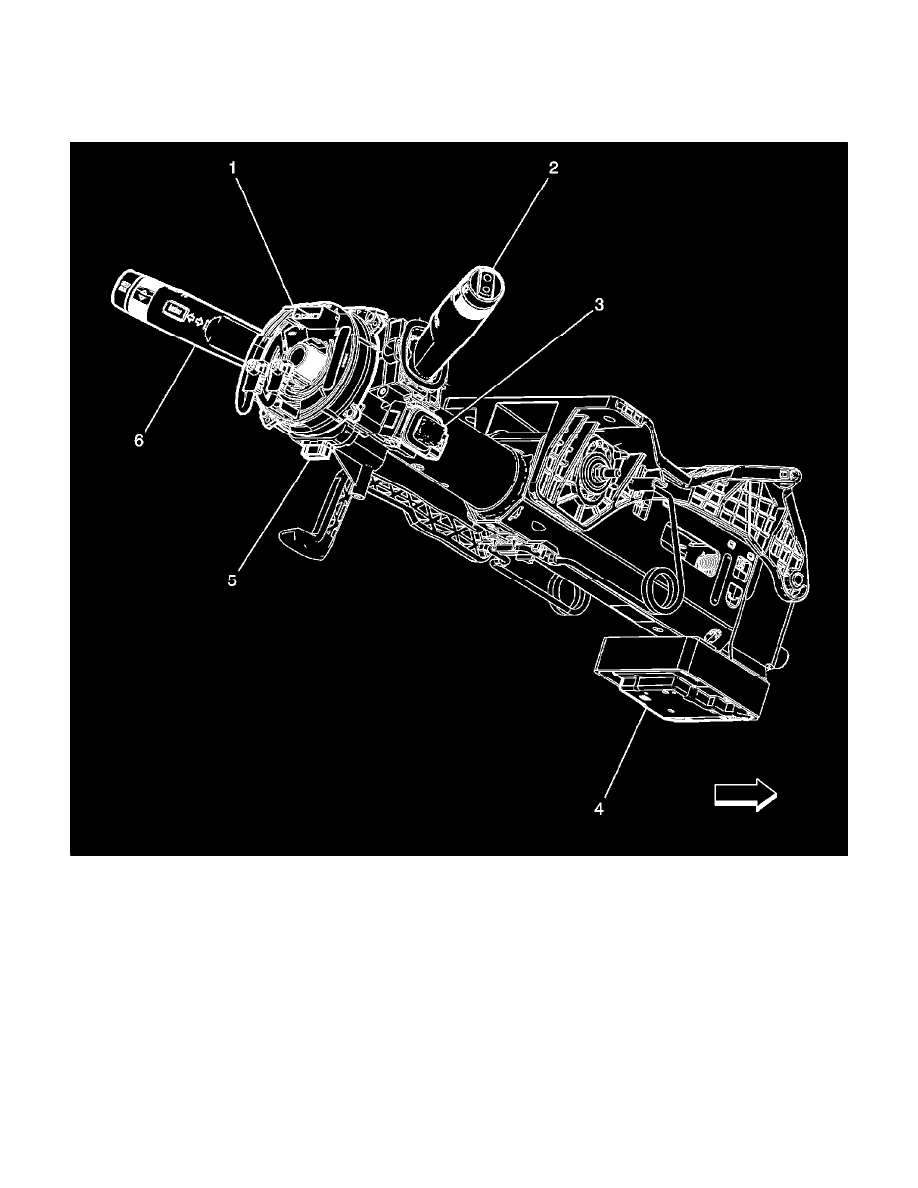

Steering Column Components
1 - X85 Steering Wheel Air Bag Coil
2 - S82 Windshield Wiper/Washer Switch
3 - S1 Adjustable Pedal Control Switch (JF4)
4 - K60 Steering Column Lock Control Module (ULS)
5 - B99 Steering Wheel Angle Sensor
6 - S78 Turn Signal/Multi-Function Switch
