Branching Point: Diagrams

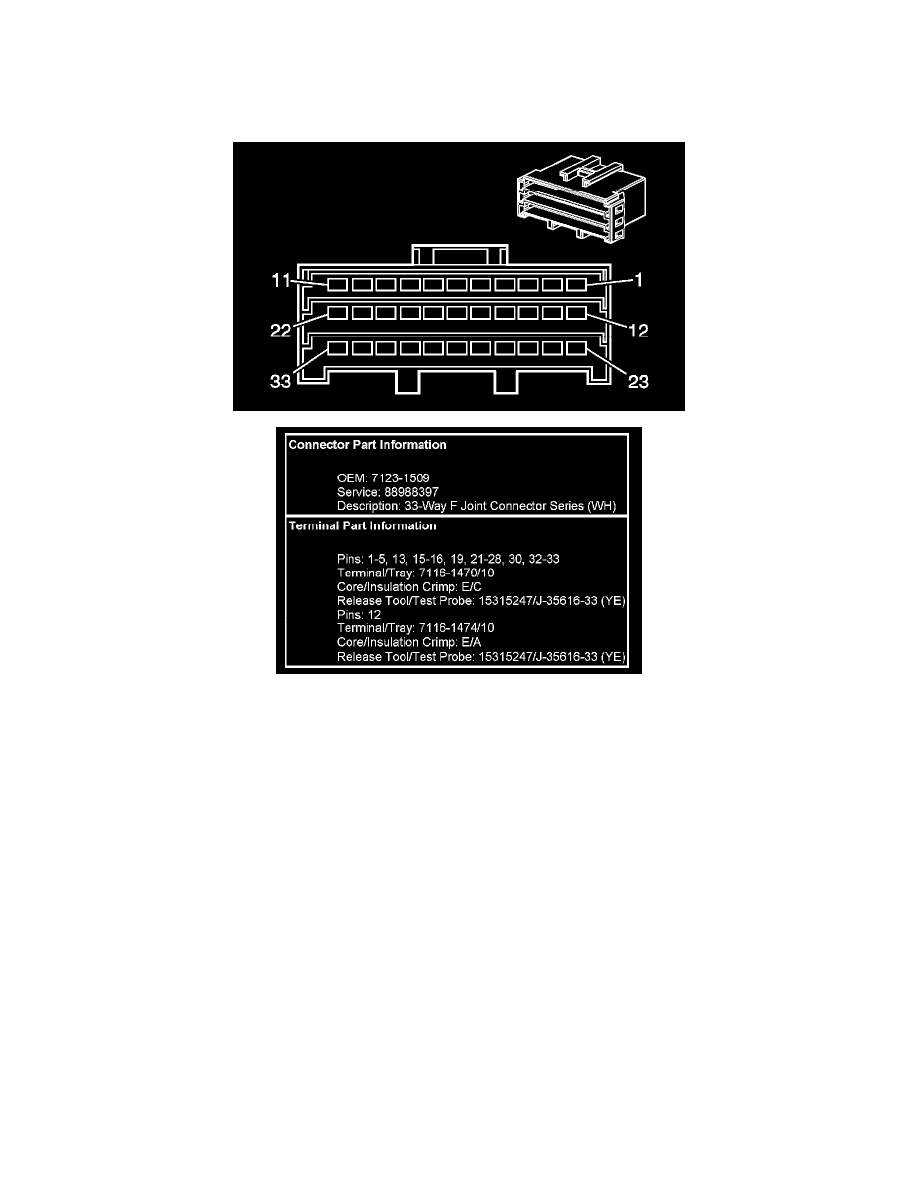

Splice Pack Connector End Views

Splice Pack SP200

Power and Ground Distribution
Branching Point
Component Information
Diagrams
