Ignition Coil: Diagrams

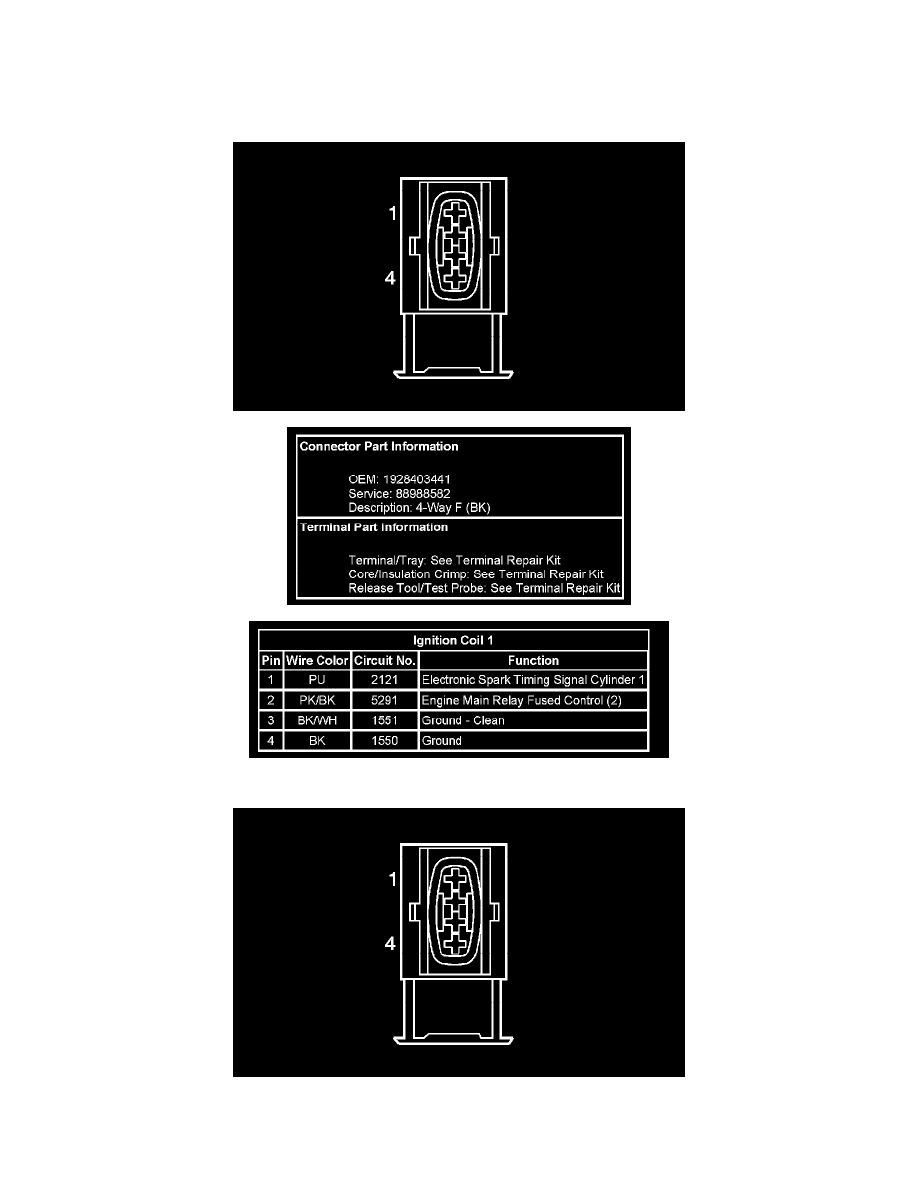

Engine Controls Connector End Views

Ignition Coil 1

Ignition Coil 2

Pinch or Ctrl + scroll to zoom. Double-tap to reset.
