Control Assembly: Locations

HVAC Component Views

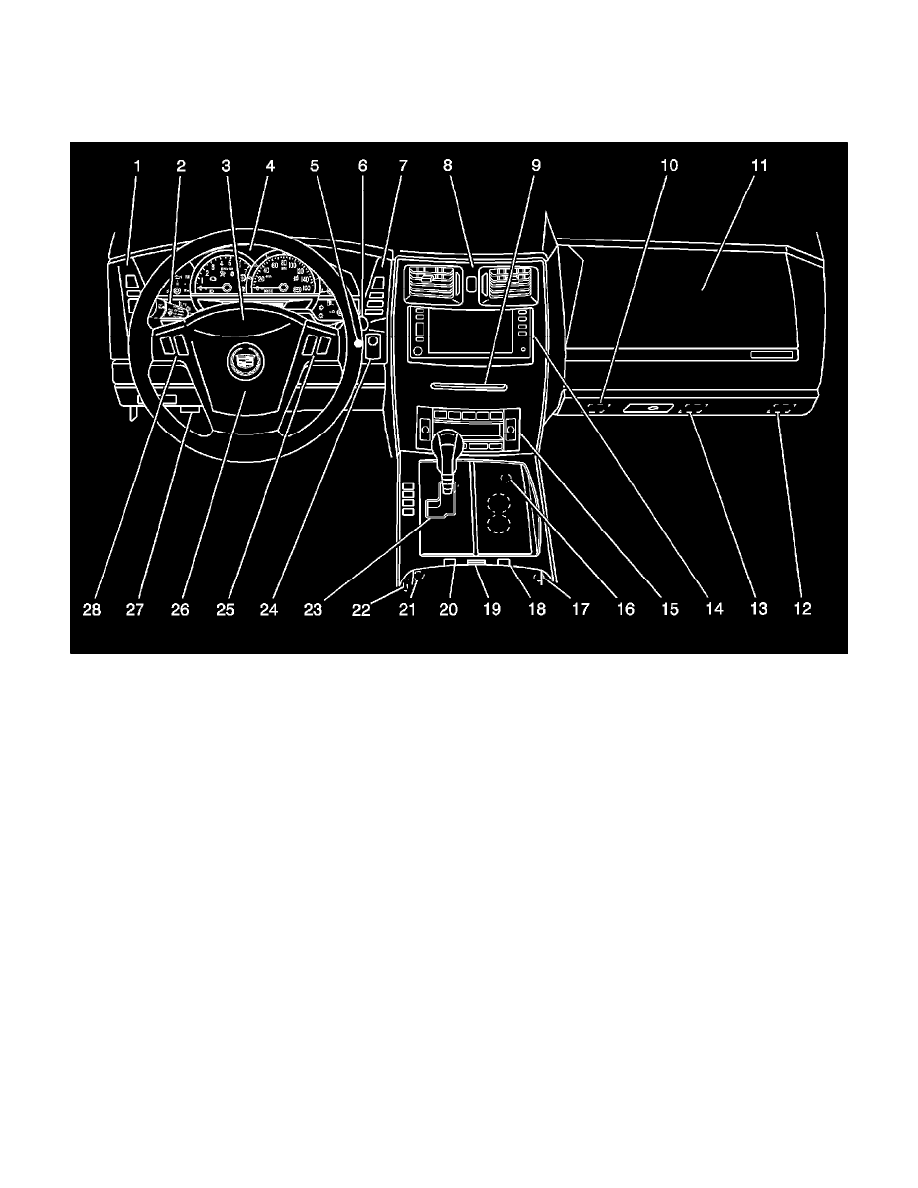

Instrument Panel

Instrument Panel

1 - Dimmer/Head Up Display (HUD) Switch
2 - Turn Signal/Multifunction Switch
3 - Inflatable Restraint Steering Wheel Module
4 - Instrument Panel Cluster (IPC)
5 - Air Temperature Sensor - Inside
6 - Windshield Wiper/Washer Switch
7 - Driver Information Center (DIC) Switch
8 - Hazard Switch
9 - CD Changer
10 - Valet Switch
11 - Inflatable Restraint I/P Module
12 - Inflatable Restraint I/P Module Disable Switch
13 - I/P Compartment Lamp
14 - Radio
15 - HVAC Control Module
16 - Cigar Lighter
17 - Courtesy Lamp Switch - Console
18 - Folding Top Switch
19 - Inflatable Restraint I/P Module Disable Switch LED
20 - Traction Control Switch
21 - Auxiliary Power Outlet
22 - Courtesy Lamp - Console
23 - Automatic Transmission Shift Lever
24 - Ignition Mode Switch
25 - Steering Wheel Controls - Right
26 - Horn Switch
