XLR V8-4.6L (2007)

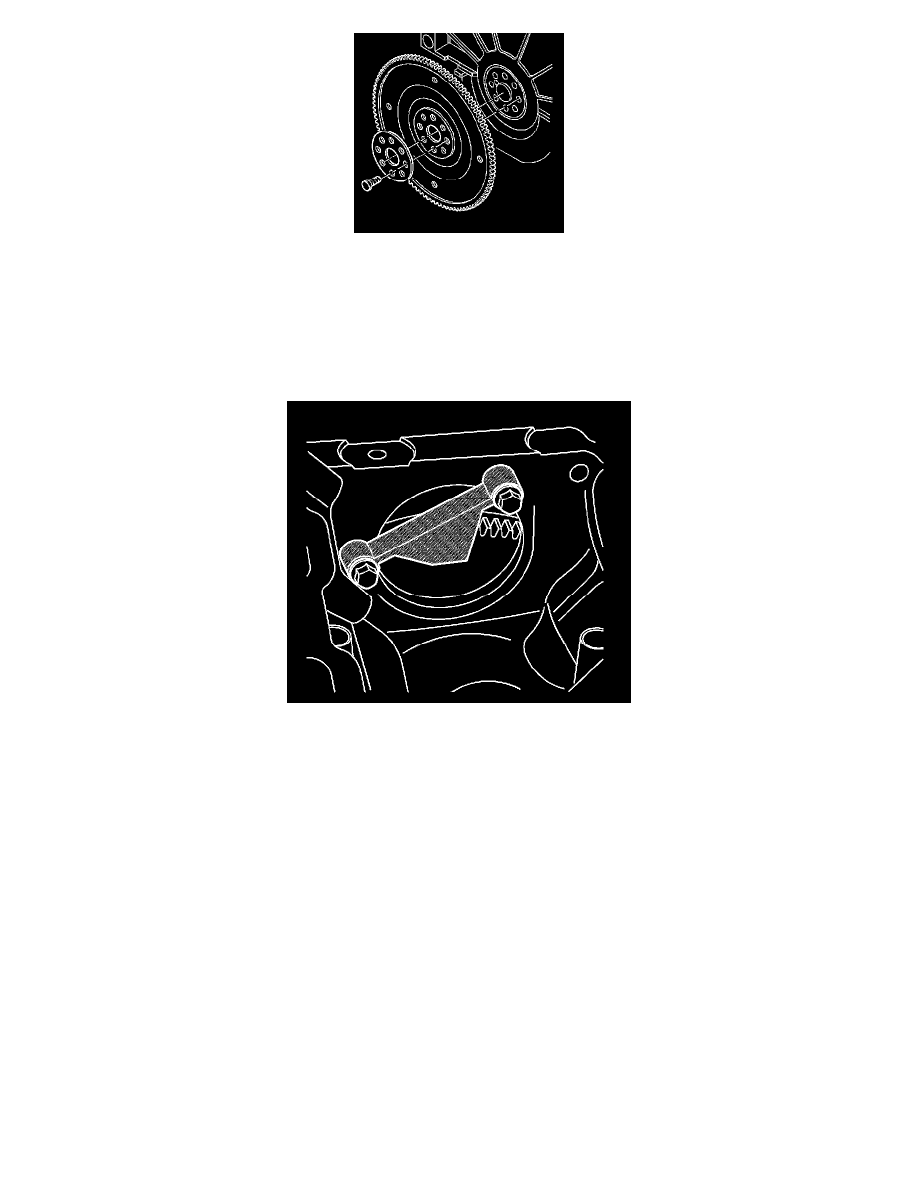

2. Position the flywheel and the reinforcement to the crankshaft.
Notice: Refer to Fastener Notice.
3. Install the flywheel mounting bolts.
1. Tighten the flywheel mounting bolts a first pass to 30 N.m (22 lb ft).
2. Tighten the flywheel mounting bolts a final pass an additional 50 degrees using the J 45059.
4. Remove the EN 46326.
5. Install the intake manifold.
6. Install the driveline support assembly.
7. Install the powertrain.
