Timing Belt: Service and Repair (page 3 of 9)
- Make
- Chevrolet
- Model
- Aveo
- Engine
- L4-1.6L
- Year
- 2008
- Section
- Timing Belt
MaintenanceService and Repair · page 3 of 9

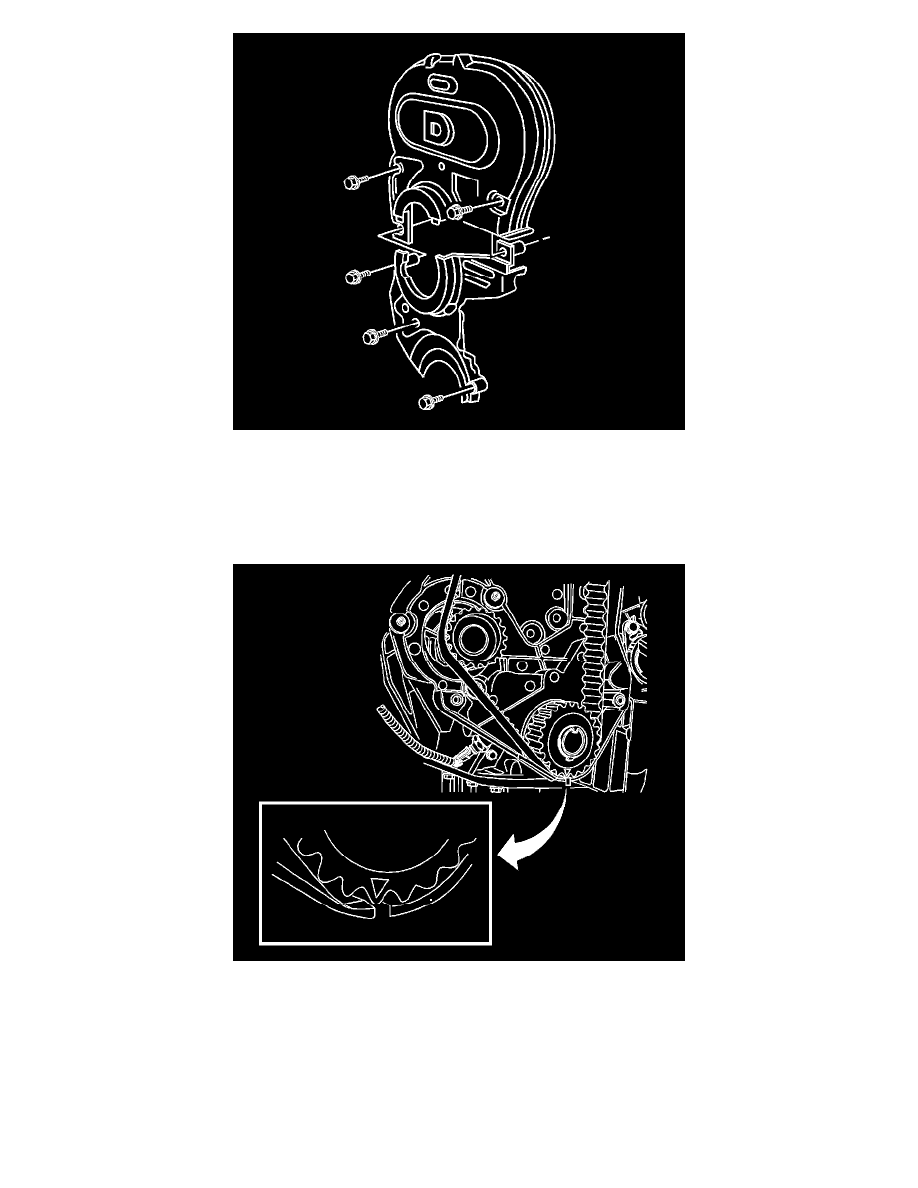

12. Remove the upper front timing belt cover bolts.
13. Remove the upper front timing belt cover.
14. Remove the lower front timing belt cover bolts.
15. Remove the lower front timing belt cover.
16. Remove the power steering pump mounting bolts, if equipped.
17. Install the crankshaft pulley bolt.
18. Using the crankshaft pulley bolt, rotate the crankshaft clockwise until the timing mark on the crankshaft gear is aligned with the timing mark at the
bottom of the rear timing belt cover.
