Map Light: Diagrams

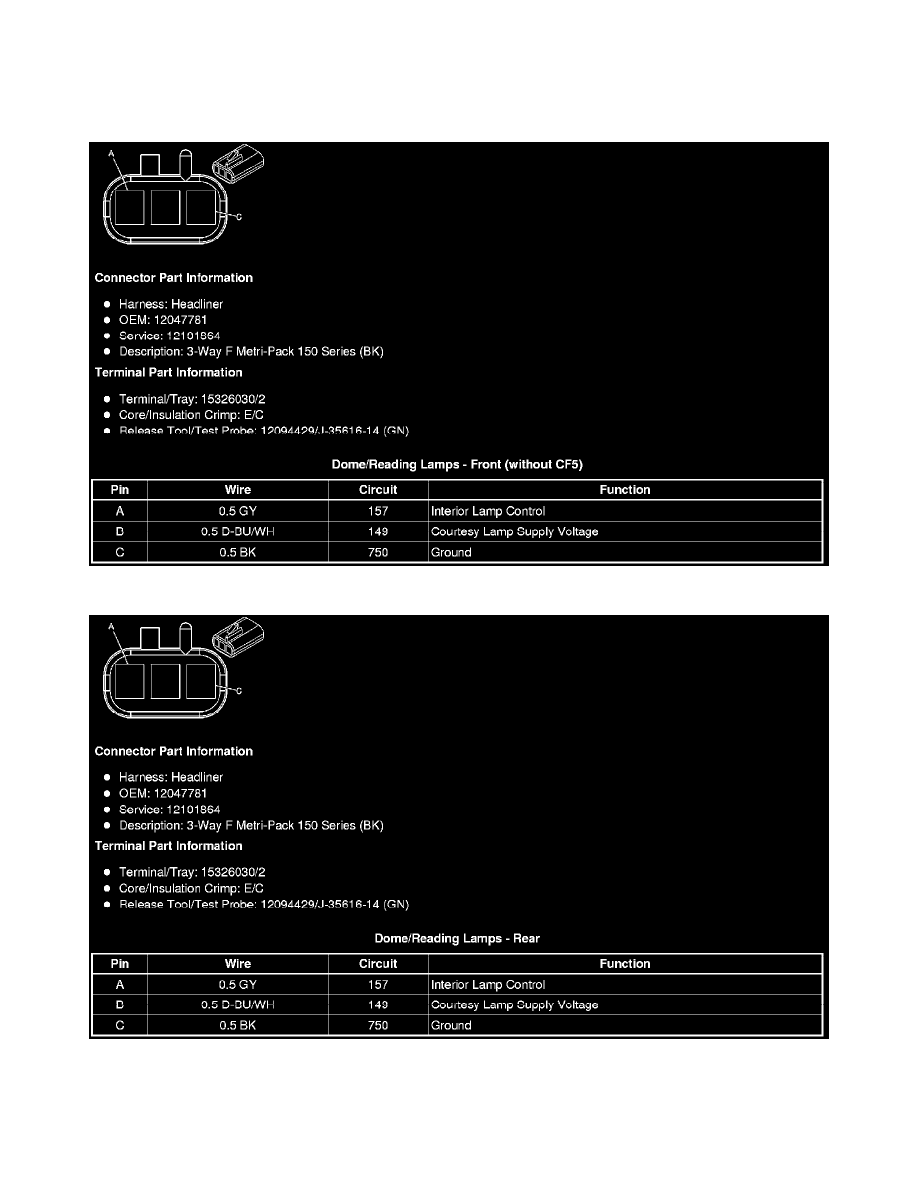

Component Connector End Views

Dome/Reading Lamps - Front (without CF5)

Dome/Reading Lamps - Rear

Overhead Console Courtesy/Reading Lamps (CF5)
