Relay Box: Diagrams
- Make
- Dodge
- Model
- Avenger
- Engine
- L4-2.4L
- Year
- 2009
- Section
- Fuses and Circuit Breakers › Relay Box › Diagrams
MaintenanceDiagrams · page 1 of 5
Relay Box: Diagrams

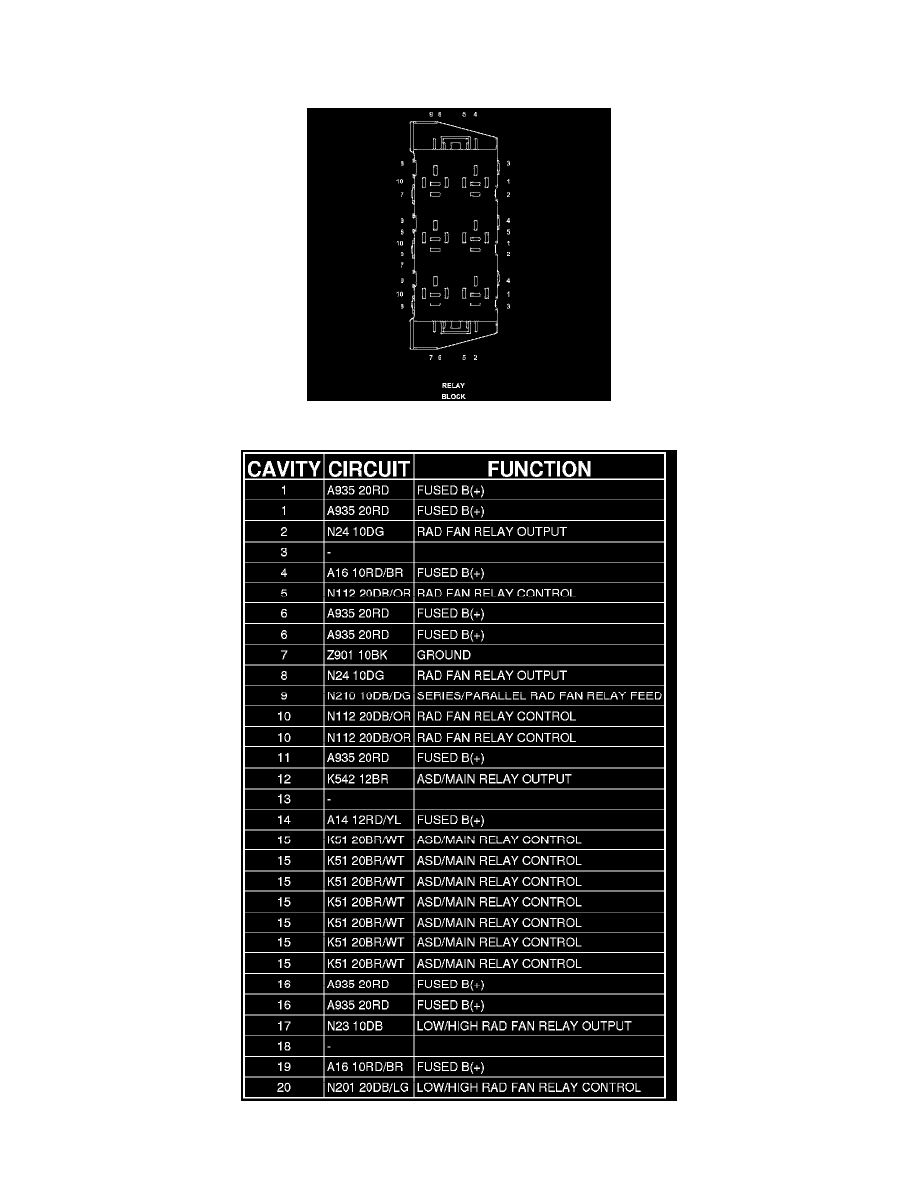

Connector - (HDLP_DASH) 20 WAY
RELAY BLOCK - (HDLP_DASH) 20 WAY
Pinch or Ctrl + scroll to zoom. Double-tap to reset.
