Caliber L4-2.0L (2008)
Drive Belt: Description and Operation
GAS ENGINE

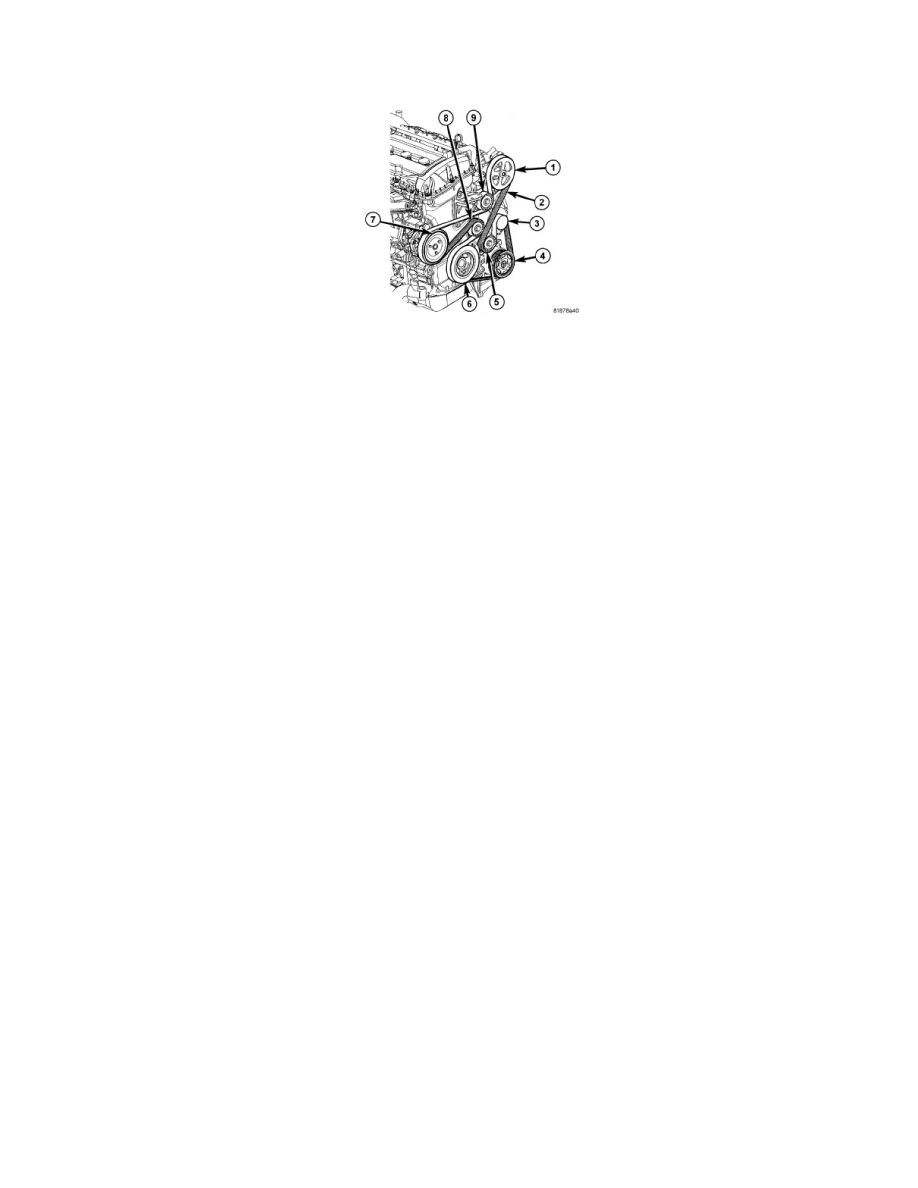

The accessory drive belt (2) is a serpentine type belt that is driven by the crankshaft pulley (6).
The belt drives the A/C compressor, generator (3), power steering pump (1) and water pump (7). Belt tension is maintained by an automatic belt
tensioner (8).
