Challenger V8-5.7L (2010)
Jump Starting: Service and Repair
JUMP STARTING
WARNING: Review all safety precautions and warnings in the battery system section. See: Starting and Charging/Battery/Service and
Repair/Procedures
-
Take care to avoid the radiator cooling fan whenever the hood is raised. It can start anytime the ignition switch is ON. You can be hurt
by the fan.
-
Do not attempt to push or tow your vehicle to get it started. Vehicles equipped with an automatic transmission cannot be started this way.
Unburned fuel could enter the catalytic converter and once the engine has started, ignite and damage the converter and vehicle. If the
vehicle has a discharged battery, booster cables may be used to obtain a start from another vehicle. This type of start can be dangerous if
done improperly, so follow this procedure carefully.
-
Battery fluid is a corrosive acid solution; do not allow battery fluid to contact eyes, skin, or clothing. Don't lean over battery when
attaching clamps or allow the clamps to touch each other. If acid splashes in eyes or on skin, flush contaminated area immediately with
large quantities of water.
-
A battery generates hydrogen gas, which is flammable and explosive. Keep flame or spark away from the vent holes.
-
Do not use a booster battery or any other booster source with an output that exceeds 12 Volts.
-
The battery in this vehicle has a vent hose that should not be disconnected and should only be replaced with a battery of the same type
(vented).
Failure to follow these instructions may result in serious or fatal injury.
CAUTION: When using another vehicle as a booster, do not allow vehicles to touch. Electrical systems can be damaged on either vehicle.
NOTE: The battery is stored under an access cover in the trunk. Remote battery terminals are located in the engine compartment for jump
starting.
TO JUMP START A DISABLED VEHICLE:
1. Wear eye protection and remove any metal jewelry, such as watchbands or bracelets, that might make an inadvertent electrical contact.
2. When boost is provided by a battery in another vehicle, park that vehicle within booster cable reach, but do not allow the vehicles to touch one
another.
3. Set the parking brake, place the automatic transmission in PARK, and turn the ignition switch to the LOCK position on both vehicles.
4. Turn off the heater, radio, and all unnecessary electrical loads.

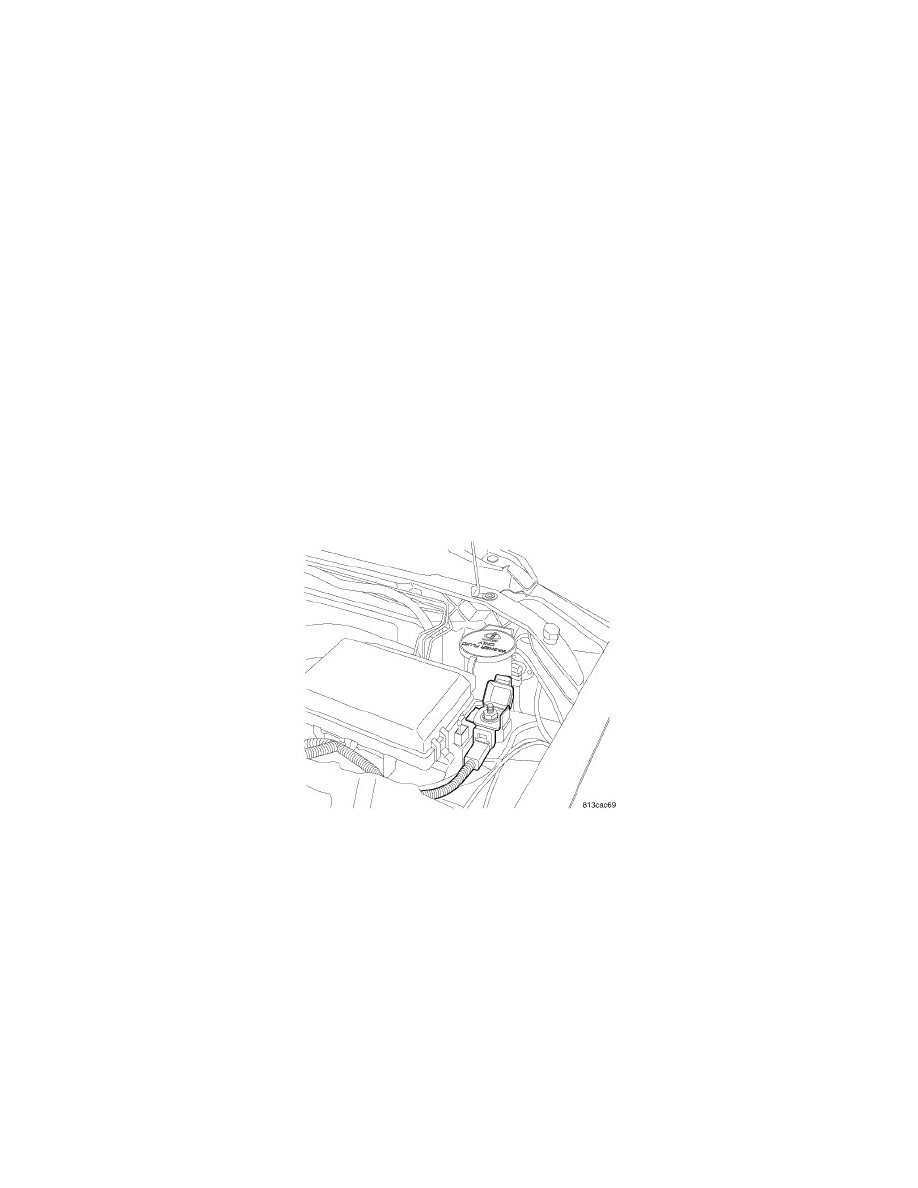

5. Connect one end of the jumper cable to the remote jump-start positive battery post (+) in the engine compartment. Connect the other end of the
same cable to the positive terminal of the booster battery. Refer to the following illustration for jump-starting connections.
6. Connect the other cable, first to the negative terminal of the booster battery and then to the engine ground (-) of the vehicle with the discharged
battery. Make sure you have a good contact on the engine ground. Refer to the following illustration for jump-starting connections.
7. Start the engine in the vehicle that has the booster battery. Let the engine idle a few minutes. Then, start the engine in the vehicle with the
discharged battery.
NOTE: See: Starting and Charging/Battery/Service and Repair/Procedures/Battery System - Battery Reconnection if the ESP/BAS light (in the
instrument cluster) remains on continuously after starting the engine of the vehicle with the discharged battery.
8. When removing the jumper cables, reverse the above sequence exactly. Be careful of the moving belts and fan.
WARNING:
