Challenger V8-5.7L (2010)
Towing Information: Service and Repair
STANDARD PROCEDURE - TOWING
WARNINGS AND CAUTIONS
WARNING: Do not allow towing attachment devices to contact the fuel tank or lines, fuel leak can result.
Do not lift or tow vehicle by front or rear bumper.
Do not go under a lifted vehicle if not supported properly on safety stands.
Do not allow passengers to ride in a towed vehicle.
Use a safety chain that is independent from the towing attachment device.
CAUTION: Do not damage brake lines, exhaust system, shock absorbers, sway bars, or any other under vehicle components when attaching
towing device to vehicle.
Do not secure vehicle to towing device by the use of front or rear suspension or steering components.
Remove or secure loose or protruding objects from a damaged vehicle before towing.
Refer to state and local rules and regulations before towing a vehicle.
Do not allow weight of towed vehicle to bear on lower fascia, air dams, or spoilers.

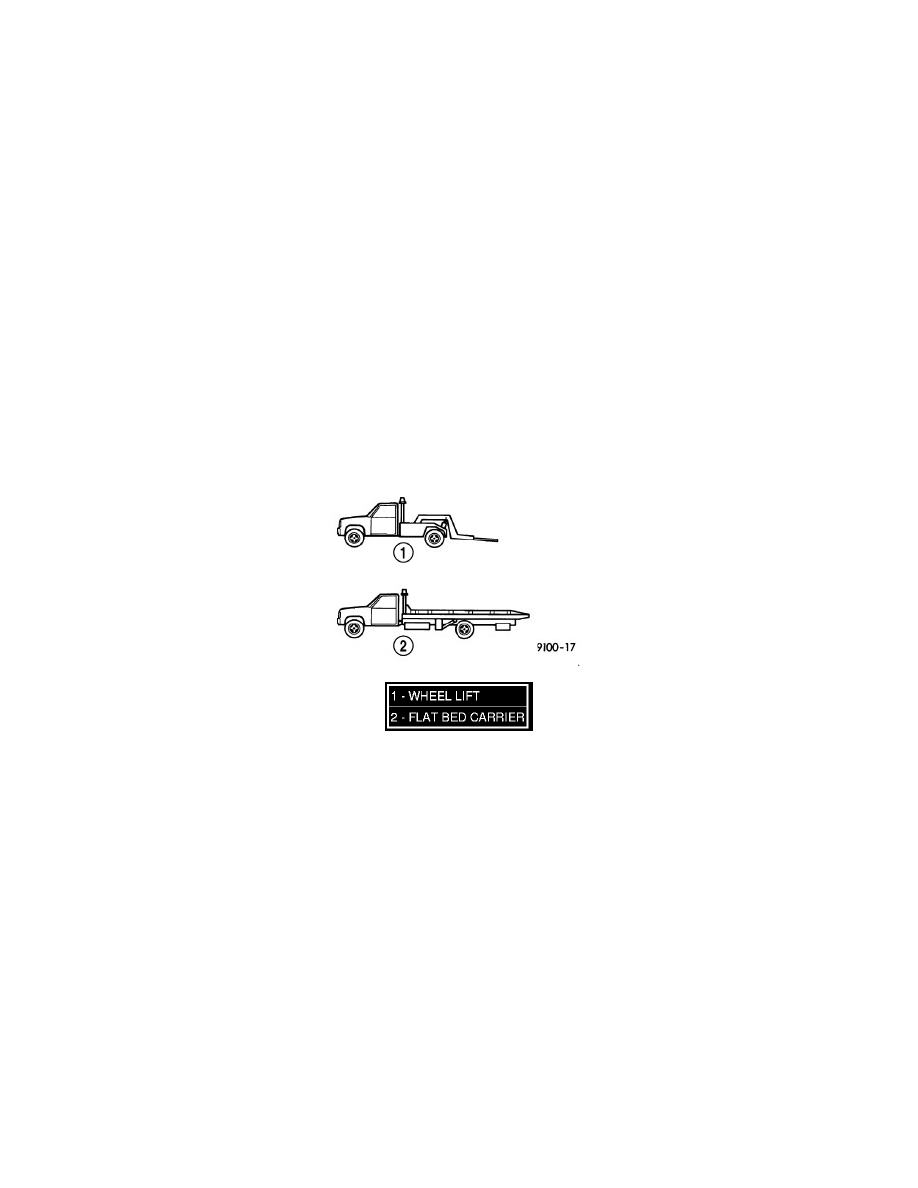

RECOMMENDED TOWING EQUIPMENT
-
RWD vehicles, a flat bed towing device is recommended.
-
AWD vehicles, a flat bed towing device is recommended.
CAUTION:
-
Do not attempt to tow this vehicle from the front with sling type towing equipment. Damage to the front fascia and air dams will result.
-
The only approved method of towing is with a flat bed truck.
-
Do not tow the vehicle from the rear. Damage to the rear sheet metal, liftgate and fascia will occur.
-
Do not push or tow this vehicle with another vehicle as damage to the bumper fascia and transmission may result.
GROUND CLEARANCE
CAUTION: If vehicle is towed with wheels removed, install lug nuts to retain brake drums or rotors.
be sure the has at least 100 mm (4 in.) ground clearance. If minimum ground clearance cannot be reached, use a towing dolly. If a flat bed device is used,
the approach angle should not exceed 15 degrees.
If using a wheel lift towing device, the disabled vehicle should be raised until the lifted wheels are a minimum 100 mm (4 in.) from the ground. Be sure
there is at least 100 mm (4 in.) clearance between the tail pipe and the ground. If necessary, remove the wheels from the front end of the vehicle and
lower the front end closer to the ground, to increase the ground clearance at the rear of the vehicle. Install lug nuts on wheel attaching studs to retain
brake rotors.
LOCKED VEHICLE TOWING
