Introduction - BODYSHELL WINDOWS
HEATED REAR WINDSCREEN
Two different types of heated rear window may be fitted according to the version.

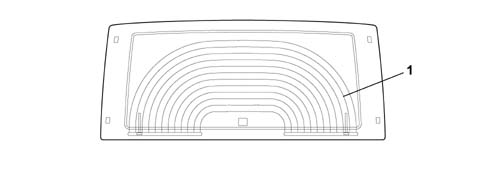

1 Heated rearwindow fitted to versions with a rear door with two asymmetrical flaps
HEATED REAR WINDSCREEN

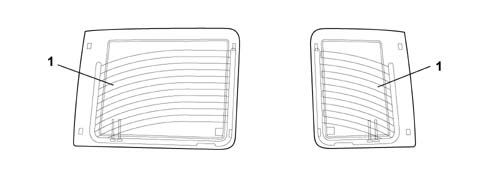

1 Heated rear window fitted to versions with a swinging rear door.
HEATED REAR WINDSCREEN

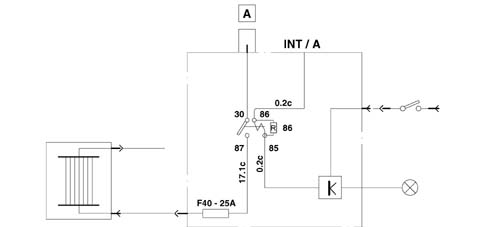

Heated rear window wiring diagram
