Introduction - GEARBOX

5 speed gearbox positioned transversely in the engine compartment, including 3 shafts supported by bearings with the gears always meshed and a final drive reduction. The twin cable external control is made from plastic materials with excellent properties (resistance to fatigue, self-lubrication capacity, reduced weight)

The following different types of gearboxes are adopted according to the engine type:

• C513 gearbox for the 1.2 8v and 1.9 D;
• C510 gearbox for the 1.9 JTD.

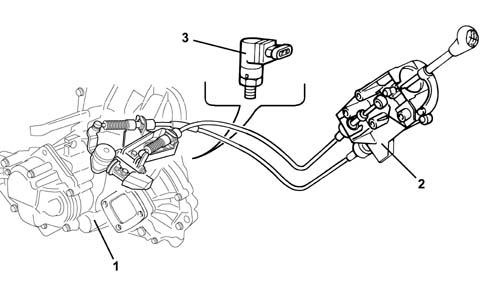

1, Manual gearbox with differential

2, Manual gearbox external controls

2, Speedometer sensor
