Windscreen glass r r including cleaning of housing

Operation 7035A18 · Windscreen

Removing

Op. 5050B34 WINDSCREEN WIPER ARM/S COMPLETE WITH BLADE - R+R

Op. 7055A18 L/H OR R/H SIDE RUBBING STRIP (ONE) FOR FRONT DOOR - R+R

Op. 7040H08 ODDMENT SHELF ON ROOF TRIM - R.R.

Op. 7040H30 FRONT PILLAR TRIM (ONE), LEFT OR RIGHT - R.R.

Op. 7065C30 GRAB HANDLE (ONE) LEFT, RIGHT OR CENTRE PASSENGER COMPARTMENT INTERIOR - R.R

Op. 7065C68 INTERIOR REAR VIEW MIRROR - R+R

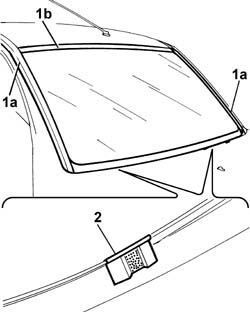

1. Remove the side seals (1a) and remove the upper seal (1b).

Apply adhesive tape to protect the edges of the bodywork along the side and top of the windscreen.

2. Fully lower the pegs on the windscreen retaining blocks.

The bead of sealant for the rearscreen can be cut using either harmonic wire or the vibrating knife; both methods are described below.

To cut the bead using harmonic wire, proceed as follows.

1. Cut a section of harmonic wire about 50 cm long then, using pliers, insert one end (1a) of the harmonic wire through the bead of sealant (1b) which secures the window (1c).

2. Fix one end of the harmonic wire to the special retaining tool (2a), inside the vehicle, and the other end to the traction handle (2b) outside the vehicle.

1. The operator inside the vehicle should keep the end of the tool (1a) pressed against the bead of sealant (1b) about 30 cm from the point where the wire passes, whilst the other operator, outside the vehicle, should pull the handle (1c), following the surround of the windscreen.

Repeat the operation in sections of about 30 cm, until the whole of the bead of sealant is cut.

To cut the bead using the vibrating knife, proceed as described below.

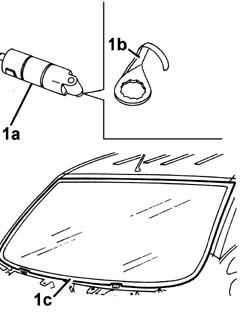

1. Use the vibrating knife (1a) with blade (1b) and cut the bead of sealant (1c) working from outside the car.

1. After cutting the whole bead of sealant, fit the suction handles on the windscreen, then with the assistance of a second operator, remove the windscreen and rest it on a supporting stand.

Refitting

1. Using a suitable tool, cut and smooth the bead of sealant in the windscreen frame, leaving a thickness of between 0.25 and 1 mm, taking care not to scratch the paintwork.

The sealant left in the housing will act as a backing for the new bond.

2. Carefully clean the windscreen seating with compressed air, and thoroughly degrease with heptane.

If bonding takes place 60 minutes after the cutting and levelling of the bead of sealant, then he pressed seal must be treated with the special activator and it is necessary to wait for 15 minutes before fixing the glass.

Touch up the paintwork if necessary.

If the same windscreen is resused.

Op. 7035A50 WINDSCREEN GLASS - CLEAN EDGES AND SAND SMALL ABRASIONS

If this is not the case, use a new windscreen and proceed as described below.

1. Remove the retaining blocks (1a) and make all the pegs (1b) come out completely, then refit the blocks.

2. Remove the adhesive tape from the edges of the bodywork, along the side and top of the windscreen frame.

3. Test fit the windscreen and centre it perfectly.

4. With the windscreen centred, mark the relative positions of the windscreen and its seating, using strips of adhesive tape.

5. Cut the adhesive tape strips and remove the windscreen.

Use an air gun to extrude a bead of sealant arond the edge of the windscreen as evenly as possible.

1. With the assistance of a second operator, fit the windscreen in its seating immediately after applying the sealant, and bed it in place.

2. Fit the belt (2a) as shown in the figure and tension it so as to apply even pressure on the whole windscreen, in order to ensure a correct match between the window (2b), sealant (2c) and windscreen frame (2d).

Op. 7035A04 WINDSCREEN - ELIMINATE LEAKS

Op. 7065C68 INTERIOR REAR VIEW MIRROR - R+R

Op. 7065C30 GRAB HANDLE (ONE) LEFT, RIGHT OR CENTRE PASSENGER COMPARTMENT INTERIOR - R.R

Op. 7040H30 FRONT PILLAR TRIM (ONE), LEFT OR RIGHT - R.R.

Op. 7040H08 ODDMENT SHELF ON ROOF TRIM - R.R.

Op. 7055A18 L/H OR R/H SIDE RUBBING STRIP (ONE) FOR FRONT DOOR - R+R

Op. 5050B34 WINDSCREEN WIPER ARM/S COMPLETE WITH BLADE - R+R
