Soundproofing lining for bonnet lid - r+r

Operation 7025A22 · Bonnet lid

Removing

Open the bonnet.

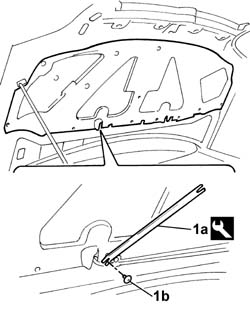

1. Using the tool (1a), prise off the fixing studs (1b).

	Name	Country
1a	Scraper blade	1.878.077.000

2. Remove the cover.

Refitting

Check that the trim is undamaged.

Fit the trim and secure with the fixing studs.

Close the bonnet lid.
