Load compartment partition

Operation 7027H08 · Load compartment partitions

Cargo trim level

Removing

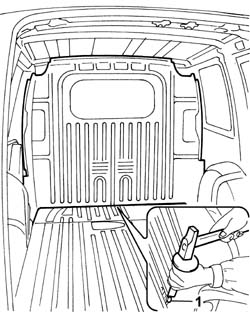

1. Working inside the load compartment, using a hammer and chisel, cut the shear bolts which secure the dividing wall.

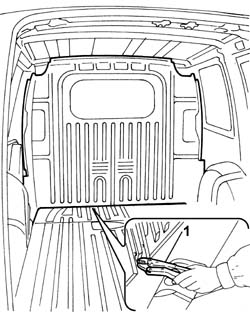

1. Using self-locking grippers, undo the bolts securing the dividing wall.

Remove the dividing wall and rest it on a suitable platform.

Refitting

Fit the dividing wall and tighten the bolts, using new shear bolts.
