Brake pedal - r+r manual gearbox versions

Operation 3330B22 · Pedal unit

Removing

Op. 5550D10 BRAKE LIGHT SWITCH - R+R.

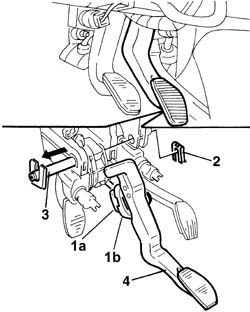

1. Disconnect the brake servo rod from the brake pedal; press on the side tabs of retaining device (1a), move back retaining ring (1b) and withdraw the rod from the pedal.

2. Remove the clip (brake pedal end) retaining the brake and clutch pedal mount pin.

3. Partially withdraw the pedal retaining pin.

4. Remove the brake pedal.

Refitting

Position the brake pedal.

Insert the pedal retaining pin and secure with the retaining clip.

Press fit the brake servo rod to the brake pedal using the retaining device.

Op. 5550D10 BRAKE LIGHT SWITCH - R+R.
