H080 air conditioning controls

Make

Fiat

Model

Doblò Factory Service Manual

Year

2000–2010

Section

Manual electric controls › H080 air conditioning controls

Connectors and pin-outsH080 air conditioning controls

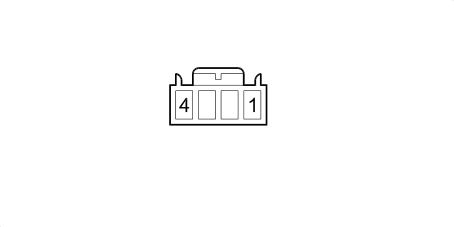

H080 AIR CONDITIONING CONTROLS

1.4 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · Climate control system, MY 2005

Wiring	Colour
See 65 AIR CONDITIONING	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	AV		See D008B FRONT/AIR CONDITIONING - HEATER COUPLING (FRONT)	A
2	0,5	AB		See N86 ELECTRONIC THERMOSTAT	1
3	0,5	N	X	See D008A FRONT/AIR CONDITIONING - HEATER COUPLING (FRONT)	C
			X	See H081 CLIMATE CONTROL FAN CONTROL	1
			X	See G045A AIR CONDITIONING/HEATER CONTROLS LIGHT (AIR CONDITIONING)	1
			X	See G045B AIR CONDITIONING/HEATER CONTROLS LIGHT (AIR CONDITIONING)	1
			X	See G045C AIR CONDITIONING/HEATER CONTROLS LIGHT (AIR CONDITIONING)	1

H80 – Air conditioning

1.2 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V, 1.9 DIESEL

Wiring	Colour
See 65 AIR CONDITIONING	bianco
