I30 Brake pedal switch
- Make
- Fiat
- Model
- Multipla Factory Service Manual
- Year
- 1998–2010
- Section
- Switches › I30 Brake pedal switch
Connectors and pin-outsI30 Brake pedal switch

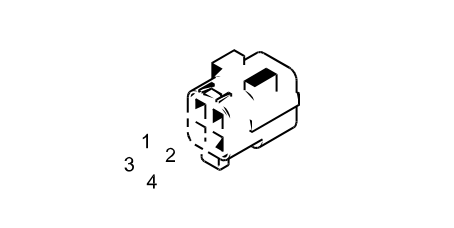

I30 Brake pedal switch
I030 – Front
| Wiring | Colour |
|---|---|
| 12 FRONT | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Diameter | Colour | Node | Connect. | Pin | |
| 1 | 1 | RN | X | D005 | 3 |
| B001D | 18 | ||||
| D004A | 16 | ||||
| 2 | 1 | LB | X | B001D | 5 |
| M030B | 12 | ||||
| I031 | 2 | ||||
| Wiring | Colour |
|---|---|
| 12 FRONT | BIANCO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Diameter | Colour | Node | Connect. | Pin | |
| 1 | Z | D005 | B | ||
| 2 | 1 | LB | X | B001D | 5 |
| M030B | 12 | ||||
| I031 | 2 | ||||
| 3 | C | D001A | 18 | ||
| 4 | 1 | RN | X | D005 | E |
| B001D | 18 | ||||
| D004A | 16 | ||||
| Wiring | Colour |
|---|---|
| 12 FRONT | NERO |
