I31 Clutch pedal switch

Make

Fiat

Model

Multipla Factory Service Manual

Year

1998–2010

Section

Switches › I31 Clutch pedal switch

Connectors and pin-outsI31 Clutch pedal switch

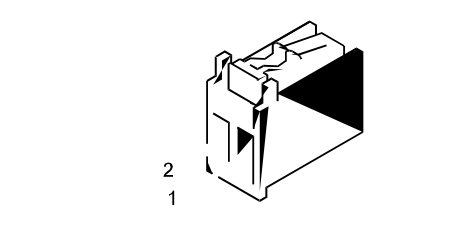

I31 Clutch pedal switch

I031 – Front

1.9 JTD 8V

Wiring	Colour
12 FRONT	VIOLA

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
1		RV		D004A	19
2		LB	X	I030	2
				B001D	5
				M030B	12

1.9 JTD 8V · Euro 3

Wiring	Colour
12 FRONT	VIOLA

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
1		RV		M010A	61
2		N	X	C011
				N025	1
				I010	1
				D004	6
				F021	1
				L020	2
				C010A
				N011	B
				D008	3
				N030	1
				M030A	9
				F015	2
				K005	2
				F010A	1
				F010B	2
				J050	31
				F020	1
				H005A	7
				N015	4
				F012	1
				F013	1
