Fuel delivery line - r r

Operation 1040B30 · FUEL SUPPLY/RETURN CIRCUIT PIPE

1.6 16v

Removing

- 4450B11 WHEEL (one) rear - R.R.

Raise the car.

1. Undo the retaining bolts.

2. Remove the plastic fuel filler pipe protection.

1. Unscrew the fuel filler fitting retaining bolts.

1. Undo the retaining bolts.

2. Using an appropriate stand, lower tank (2a) to gain access to delivery line quick-release fitting (2b) on the fuel pump.

3. Release the single delivery line from the collars on the tank and body.

4. Disconnect the single pipe from the quick-release fitting in the engine bay, then remove.

Refitting

Lay the pipe in the engine bay and connect to the fittings on the body.

Connect the quick-release fitting in the engine bay.

Connect the pipe quick-release fitting to the pump.

Secure the fuel line to the tank and body using collars.

Raise the tank and tighten the retaining bolts to torque.

Lower the vehicle.

Tighten the bolts securing the filler fitting to the body to torque.

- 4450B11 WHEEL (one) rear - R.R.

1.9 JTD 8V

Removing

- 4450B11 WHEEL (one) rear - R.R.

Raise the car.

1. Undo the retaining bolts.

2. Remove the plastic fuel filler pipe protection.

1. Unscrew the fuel filler fitting retaining bolts.

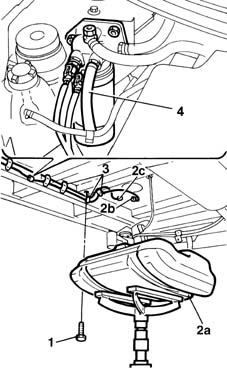

1. Undo the retaining bolts.

2. Using a stand, lower tank (2a) to gain access to quick-release fitting (2a) on the outlet line and pipe (2c) on the fuel pump.

3. Release the outlet line from the collars on the tank and body.

4. Disconnect the pipe from the fuel filter, then remove.

Refitting

Lay the pipe in the engine bay and connect to the fittings on the body.

Connect the pipe to the fuel filter.

Connect the quick-release fitting on the outlet line to the pump.

Connect the quick-release fitting on the inlet line to the pump.

Secure the fuel line to the tank and body using collars.

Raise the tank and tighten the retaining bolts to torque.

Lower the vehicle.

Tighten the bolts securing the filler fitting to the body to torque.

- 4450B11 WHEEL (one) rear - R.R.

1.9 JTD 8V · Euro 3

Removing

- 4450B11 WHEEL (one) rear - R.R.

Raise the car.

1. Undo the retaining bolts.

2. Remove the plastic fuel filler pipe protection.

1. Unscrew the fuel filler fitting retaining bolts.

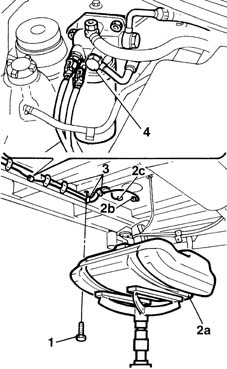

1. Undo the retaining bolts.

2. Using a stand, lower tank (2a) to gain access to quick-release fitting (2a) on the outlet line and pipe (2c) on the fuel pump.

3. Release the outlet line from the collars on the tank and body.

4. Undo the connector fastening the pipe to the filter, keeping the copper washers, and remove the actual pipe.

Refitting

Lay the pipe in the engine bay and connect to the fittings on the body.

Tighten the connector fixing the pipe to the filter to torque after having checked that the copper washers are correctly positioned.

Connect the quick-release fitting on the outlet line to the pump.

Connect the quick-release fitting on the inlet line to the pump.

Secure the fuel line to the tank and body using collars.

Raise the tank and tighten the retaining bolts to torque.

Lower the vehicle.

Tighten the bolts securing the filler fitting to the body to torque.

- 4450B11 WHEEL (one) rear - R.R.
