Vehicle dimensions
- Make
- Fiat
- Model
- Multipla Factory Service Manual
- Year
- 1998–2010
- Section
- Project description and specifications › Vehicle dimensions

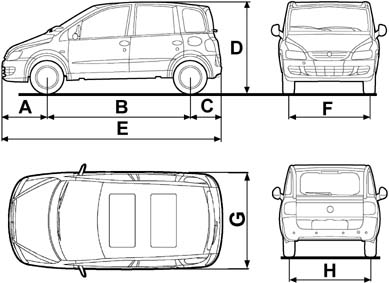

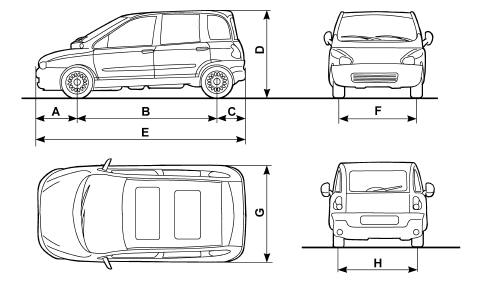

VEHICLE DIMENSIONS
| 1581 16v | BIPOWER | BLUPOWER | LPG | 1910 JTD | |
|---|---|---|---|---|---|
| A (mm) | 760 837 (***) | 760 837 (***) | 760 837 (***) | 760 837 (***) | 760 837 (***) |
| B (mm) | 2666 | 2666 | 2666 | 2666 | 2666 |
| C (mm) | 568 586 (***) | 568 586 (***) | 568 586 (***) | 568 586 (***) | 568 586 (***) |
| D (mm) | 1695 | 1700 (1721) (**) | 1700 | 1721 | 1695 |
| E (mm) | 3994 4089 (***) | 3994 4089 (***) | 3994 4089 (***) | 3994 4089 (***) | 3994 4089 (***) |
| F (mm) | 1511 1515 (***) | 1511 1515 (***) | 1511 1515 (***) | 1511 1515 (***) | 1511 1515 (***) |
| G (mm) | 1871 | 1871 | 1871 | 1871 | 1871 |
| H (mm) | 1520 | 1520 | 1520 | 1520 | 1520 |
Luggage compartment capacity in normal conditions (V.D.A. standards): dm<SUP>3</SUP> 430 (385)*
Luggage compartment volume up to roof and with rear seats removed: dm<SUP>3</SUP> 1900 (1855)*
With the Tirekit, supplied as an alternative to the spare wheel, the luggage compartment capacity in creases by 45 dm <SUP>3</SUP>.
* For BIPOWER, BLUPOWER and LPG versions.
(**) Euro 3 versions
(***) For versions from 06/2004
| VAN 100 16v 2 seater (***) | VAN 100 16v 3 seater (***) | VAN 100 16v 4 seater (***) | VAN 100 16v 5 seater (***) | |
|---|---|---|---|---|
| A (mm) | 837 | 837 | 837 | 837 |
| B (mm) | 2666 | 2666 | 2666 | 2666 |
| C (mm) | 586 | 586 | 586 | 586 |
| D (mm) | 1695 | 1695 | 1695 | 1695 |
| E (mm) | 4089 | 4089 | 4089 | 4089 |
| F (mm) | 1515 | 1515 | 1515 | 1515 |
| G (mm) | 1871 | 1871 | 1871 | 1871 |
| H (mm) | 1520 | 1520 | 1520 | 1520 |
(***) For versions from 06/2004
| BIPOWER VAN 2 seater | BIPOWER VAN 3 seater | BIPOWER VAN 4 seater | |
|---|---|---|---|
| A (mm) | 760 837 (***) | 760 837 (***) | 760 837 (***) |
| B (mm) | 2666 | 2666 | 2666 |
| C (mm) | 568 586 (***) | 568 586 (***) | 568 586 (***) |
| D (mm) | 1721 | 1721 | 1721 |
| E (mm) | 3994 4089 (***) | 3994 4089 (***) | 3994 4089 (***) |
| F (mm) | 1511 1515 (***) | 1511 1515 (***) | 1511 1515 (***) |
| G (mm) | 1871 | 1871 | 1871 |
| H (mm) | 1520 | 1520 | 1520 |
| JTD VAN 2 seater (***) | JTD VAN 3 seater | JTD VAN 4 seater (***) | JTD VAN 5 seater | |
|---|---|---|---|---|
| A (mm) | 837 | 760 837 (***) | 837 | 760 837 (***) |
| B (mm) | 2666 | 2666 | 2666 | 2666 |
| C (mm) | 586 | 568 586 (***) | 586 | 568 586 (***) |
| D (mm) | 1695 | 1695 | 1695 | 1695 |
| E (mm) | 4089 | 3994 4089 (***) | 4089 | 3994 4089 (***) |
| F (mm) | 1515 | 1511 1515 (***) | 1515 | 1511 1515 (***) |
| G (mm) | 1871 | 1871 | 1871 | 1871 |
| H (mm) | 1520 | 1520 | 1520 | 1520 |
(***) For versions from 06/2004
| Dimensions of the load carrying compartment | VAN 100 16v 2 seater (***) | VAN 100 16v 3 seater (***) | VAN 100 16v 4 seater (***) | VAN 100 16v 5 seater (***) |
|---|---|---|---|---|
| Length, (mm) | 1470 | 1470 | 690 | 690 |
| Max width, (mm) | 1540 | 1540 | 1440 | 1440 |
| Width between wheel arches, (mm) | 1251 | 1215 | 1215 | 1215 |
| Height, (mm) | 1158 | 1158 | 1168 | 1168 |
| Dimensions of the load carrying compartment | BIPOWER VAN 2 seater | BIPOWER VAN 3 seater | BIPOWER VAN 4 seater |
|---|---|---|---|
| Length, (mm) | 1470 | 1470 | 690 |
| Max width, (mm) | 1540 | 1540 | 1440 |
| Width between wheel arches, (mm) | 1215 | 1215 | 1215 |
| Height, (mm) | 1168 | 1168 | 1168 |
| Dimensions of the load carrying compartment | JTD VAN 2 seater (***) | JTD VAN 3 seater | JTD VAN 4 seater (***) | JTD VAN 5 seater |
|---|---|---|---|---|
| Length, (mm) | 1470 | 690 | 1470 | 690 |
| Max width, (mm) | 1540 | 1440 | 1540 | 1440 |
| Width between wheel arches, (mm) | 1215 | 1215 | 1215 | 1215 |
| Height, (mm) | 1168 | 1168 | 1168 | 1168 |
| Volume of the load carrying compartment | VAN 100 16v 2 seater (***) | VAN 100 16v 3 seater (***) | VAN 100 16v 4 seater (***) | VAN 100 16v 5 seater (***) |
|---|---|---|---|---|
| Ceiling level, (dm3 ) | 1876 | 1876 | 495 | 495 |
| Window level, (dm3 ) | 355 | 355 | ||
| Waist level, (dm3 ) | 982 | 982 |
| Volume of the load carrying compartment | BIPOWER VAN 2 seater | BIPOWER VAN 3 seater | BIPOWER VAN 4 seater |
|---|---|---|---|
| Ceiling level, (dm3 ) | 1876 | 1876 | 495 |
| Window level, (dm3 ) | 355 | ||
| Waist level, (dm3 ) | 982 | 982 |
| Volume of the load carrying compartment | JTD VAN 2 seater (***) | JTD VAN 3 seater | JTD VAN 4 seater (***) | JTD VAN 5 seater |
|---|---|---|---|---|
| Ceiling level, (dm3 ) | 1876 | 1876 | 495 | 495 |
| Window level, (dm3 ) | 355 | 355 | ||
| Waist level, (dm3 ) | 982 | 982 |
For versions from 06/2004
