21 Gearbox and differentialGearbox control

GEARBOX CONTROL

The gearbox control assembly for 899 - 1108 versions consists of selector lever (8) and cables (5) and (6).

Lever (8) is fitted to mount (10), fastened to the car floor pan
Power cable (5) is used to engage gears, while cable (6) is used only for selection.
This type of control improves manoeuvrability and reduces much of the noise and vibration transmitted by conventional rigid rods.

Control cables are similar for 899 - 1108 engines. The difference lies in a protective sheath (7) fitted to the gear engagement cable on the 899 version.

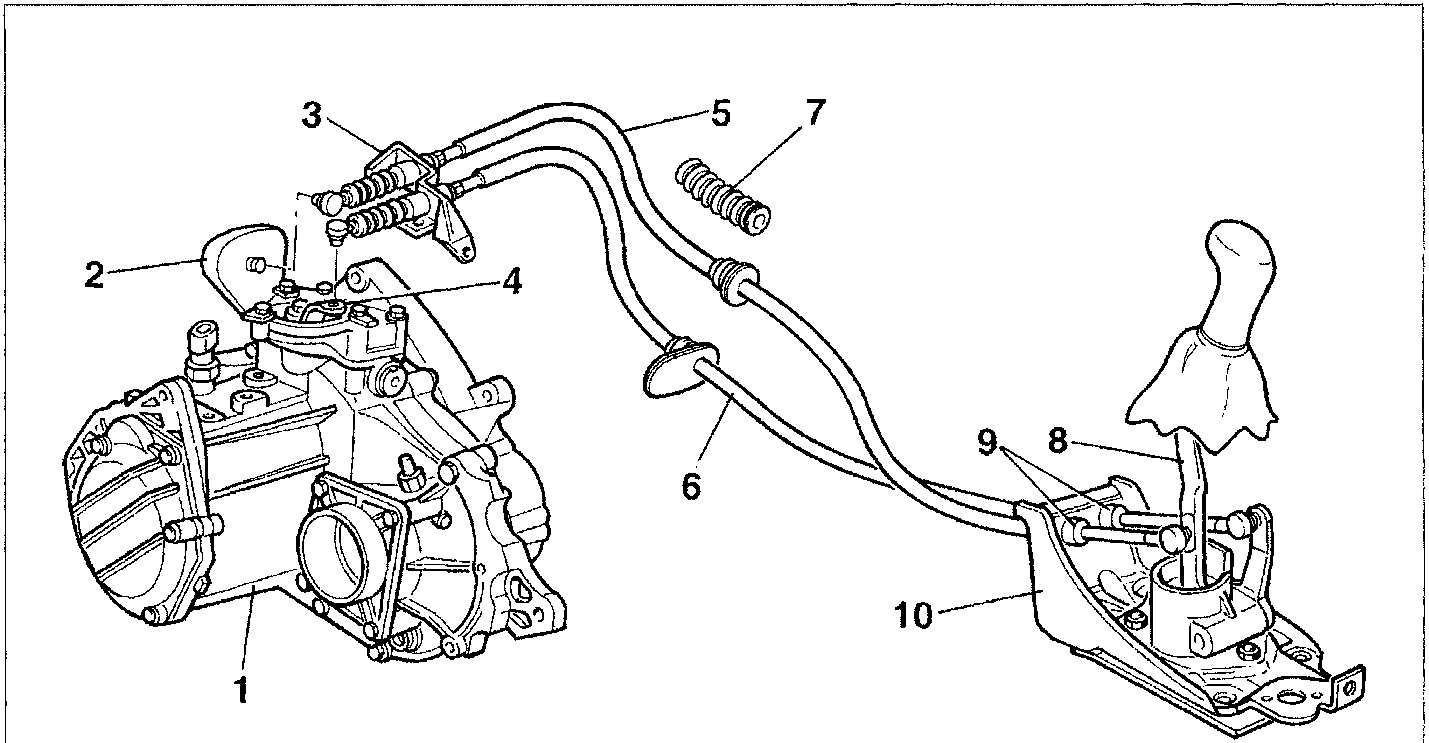

Diagram of the gearbox control assembly showing the manual gearbox, gear engagement and selection levers, control cables with heat shield, and the gear lever mount on the tunnel.

Gear selection and engagement assembly operating diagram

  1. Manual gearbox C526.5.10
  2. Gear engagement lever
  3. Gear selection lever
  4. Mount on gearbox for gear selection-engagement cables
  5. Gear engagement lever control cable
  6. Gear selection lever control cable
  7. Heat shield used only on version 899
  8. Gear lever
  9. Gear selection/engagement cable seal retaining springs
  10. Mount on tunnel for gear selection-engagement cables
