Fitting

FITTING

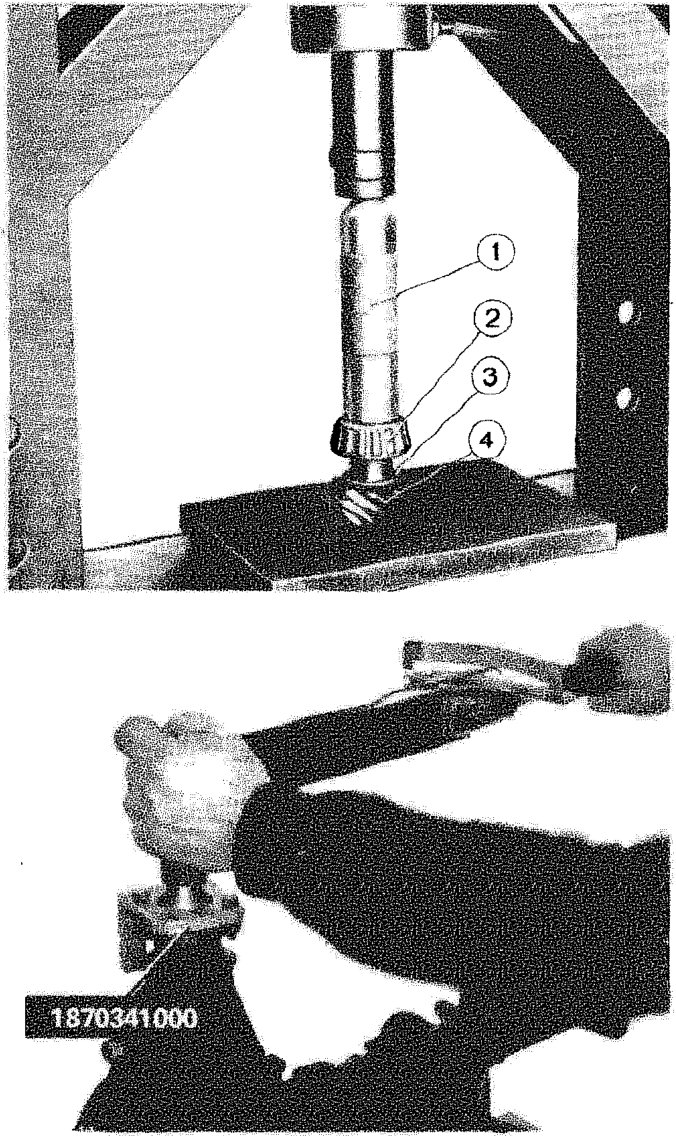

Fitting rear roller bearing inner track on the bevel pinion, on the press.

1. Drift 1870152000
2. Rear roller bearing inner track.
3. Support ring.
4. Bevel pinion.

16÷25,5 daNm

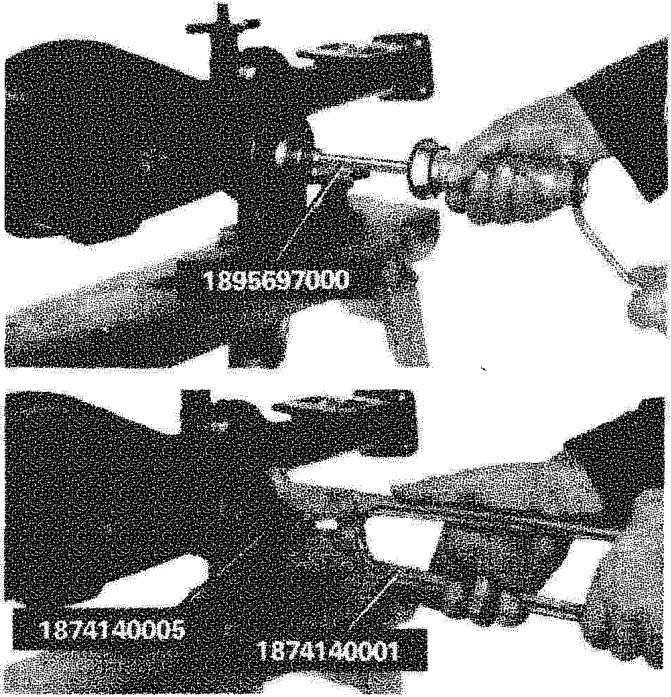

Tightening nut fixing sleeve to bevel pinion.

The ring nut should be tightened to a torque of 16 ÷ 5.5 daNm to produce a rolling torque of 0.08 ÷ 0.12 daNm on the pinion.
Bear in mind that when fitting on this type of differential which has a rubber spacer, the nut fixing the bevel pinion must never be loosened or the flexible spacer has to be replaced.

0,08÷0,12 daNm

If, by chance, during the pre-loading operation the maximum rolling torque for the bevel pinion is exceeded, the fitting operation and the relevant checks must be repeated using a new flexible spacer.

Checking bevel pinion rolling torque (bevel pinion roller bearing pre-loading)

Staking nut fixing sleeve on bevel pinion
