Removing
- Make
- Fiat
- Model
- Panda (141) Factory Service Manual
- Year
- 1986–2003
- Section
- Bevel pinion (Panda 4x4) › Removing

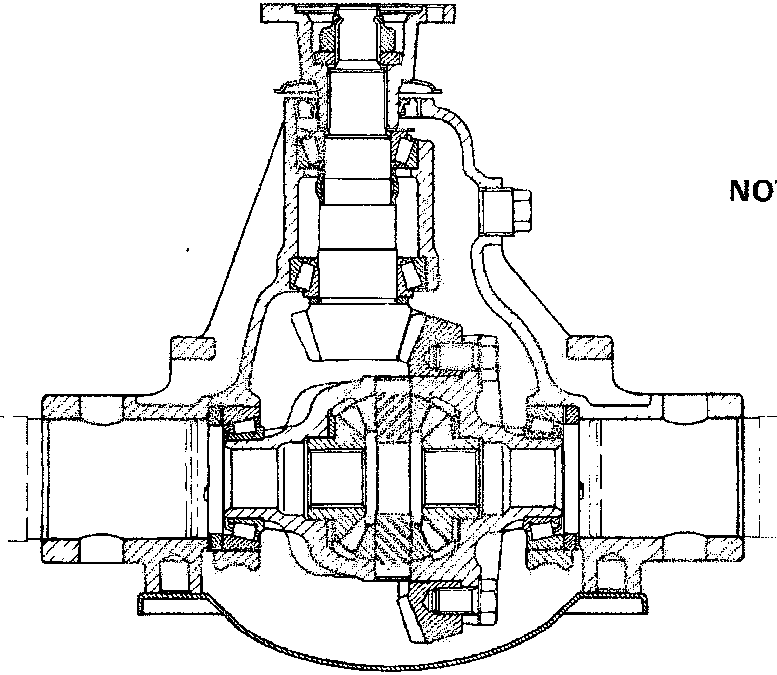

27 Axle and rear differential (4x4)Removing
REMOVING

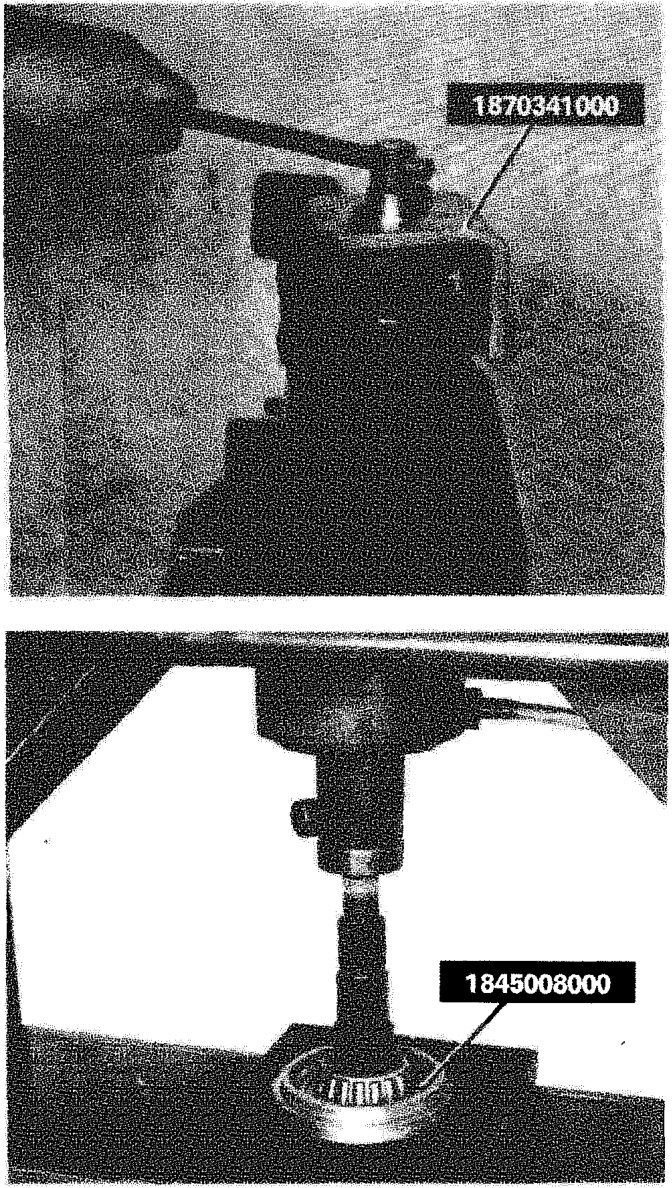

Removing nut fixing sleeve to bevel pinion
Stop the pinion rotating using tool 1870341000
Removing bevel pinion rear conical roller
bearing inner track
NOTE The crown wheel and pinion are supplied as a matching pair; if one of them is damaged, both must be replaced.
