Fiat Panda (141) Factory Service Manual (1986-2003)04 · 33 Braking system
04 · General

Master cylinder

Make
Fiat
Model
Panda (141) Factory Service Manual
Year
1986–2003
Section
Hydraulic operation › Master cylinder
33 Braking systemMaster cylinder

MASTER CYLINDER

Removing-refitting brake pipes

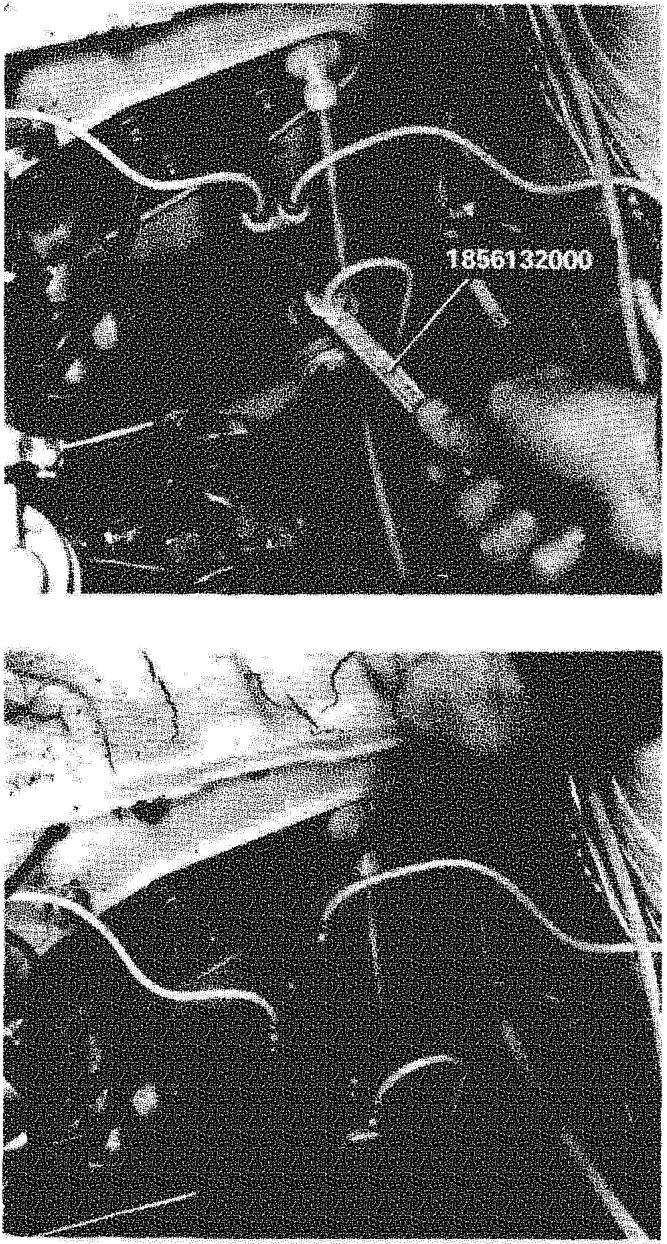

View of the master cylinder and connected brake pipes in the engine compartment.

Removing-refitting master cylinder

Bleed braking system

Exploded view of the master cylinder components including seals, pistons, springs, and the casing.

Dismantling-reassembling master cylinder

When overhauling, always replace the seals; if there appears to be anything wrong with the master cylinder casing, replace the entire unit.
