Pedal

PEDAL

Removing-refitting

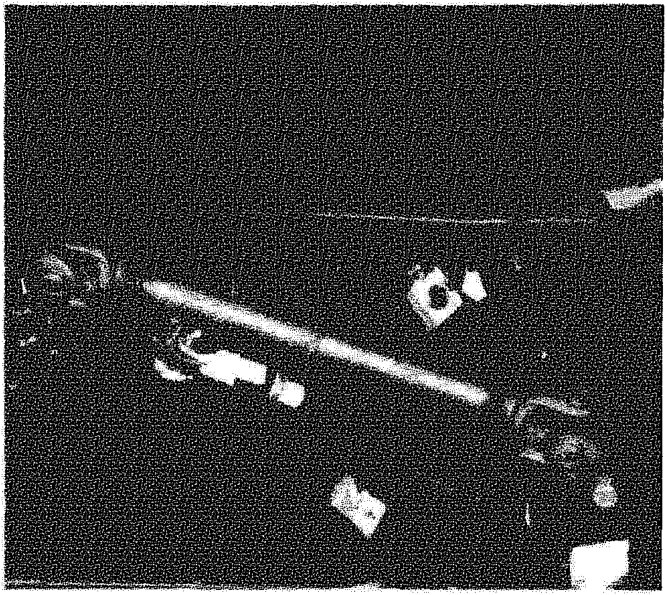

NOTE To remove the brake pedal, push at the point shown by the arrow after removing the clutch cable, brake pedal return spring and brake pump push rod for the 769 and 1000 versions and the servo-brake push rod for the 4x4 version. Lubricate the parts concerned with grease before fitting.

BRAKE FLUID RESEVOIR

Checking insufficient brake fluid warning device

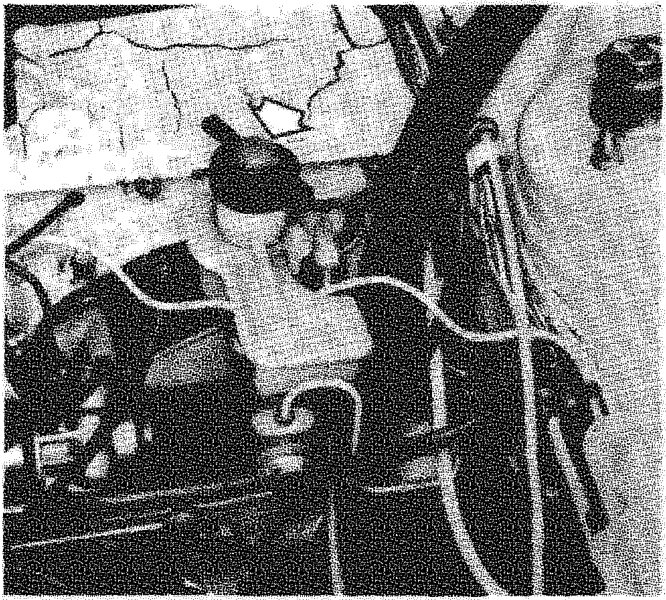

NOTE Periodically, check that the warning device is working by pressing on the top edge of the resevoir cover (as shown by the arrow): with the ignition in the on position the insufficient brake fluid warning light should come on.

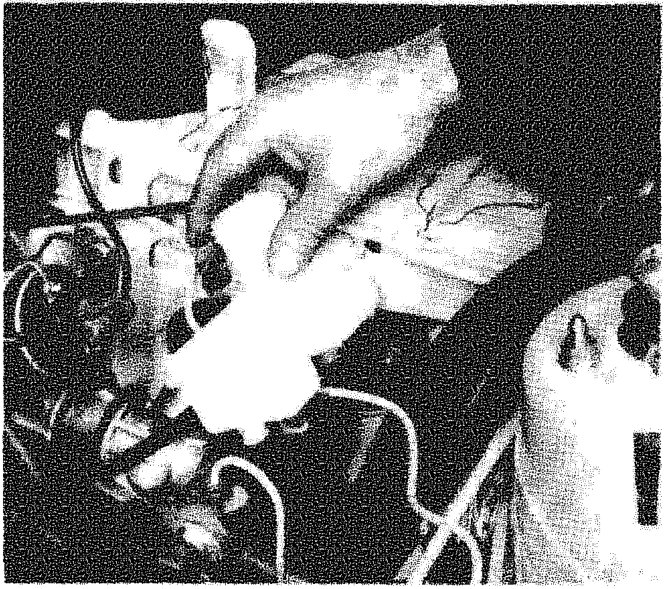

Removing-refitting resevoir from master cylinder

! Drain the brake fluid before removing the resevoir.

[icon] Bleed braking system.
