Refitting

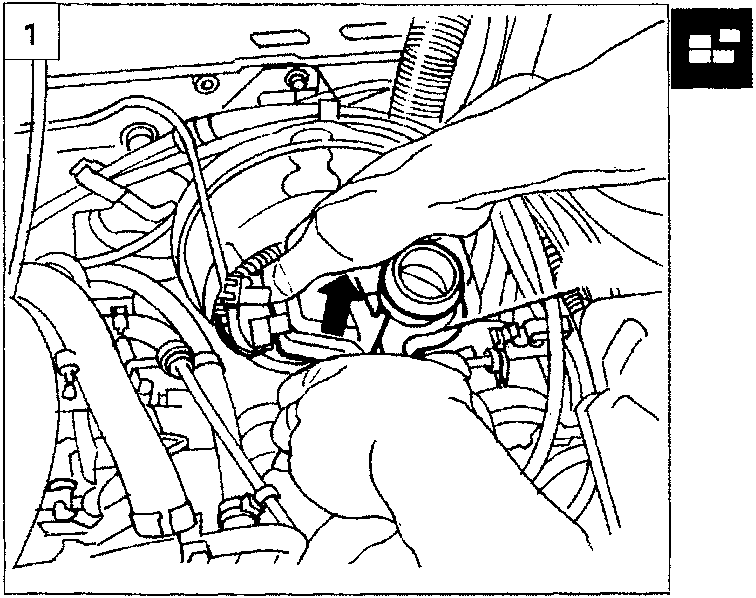

1. Remove the brake fluid reservoir;

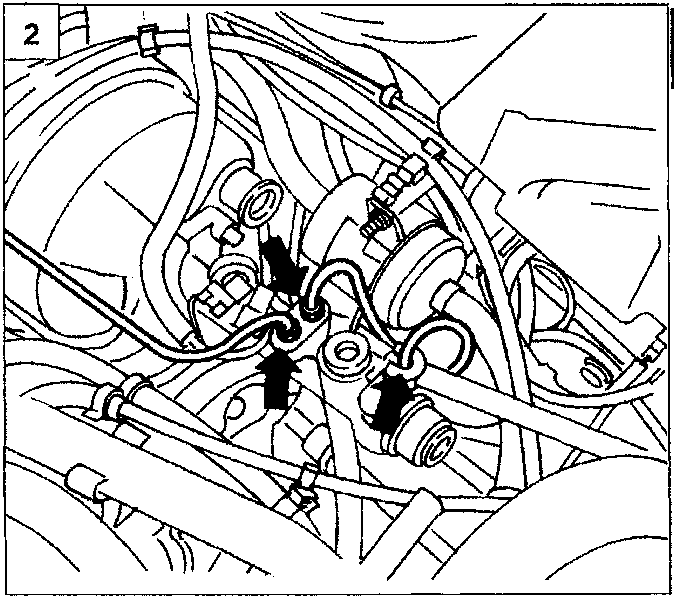

2. Undo the connectors for the rigid brake pipes;

When carrying out this operation, take care not to damage the brake pipes.

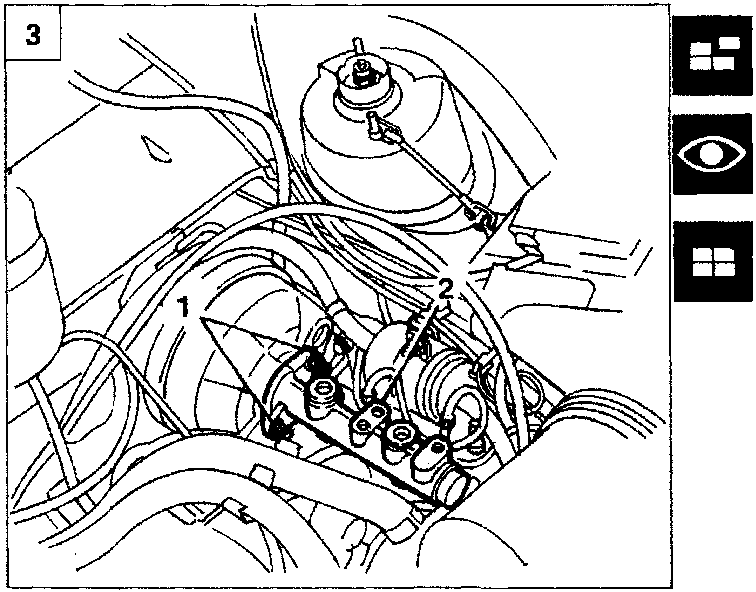

3. Undo the fixing nuts (1) and remove the brake pump (2).

When removing the brake pump, take care to ensure that the seal remains on the brake servo and the push rod which is resting inside the pump.

Refitting

NOTE When refitting, reverse the order of the operations carried out for the removal, taking care over the push ord which is only resting inside the pump. Bleed the air from the system.
