33 Braking systemRefitting

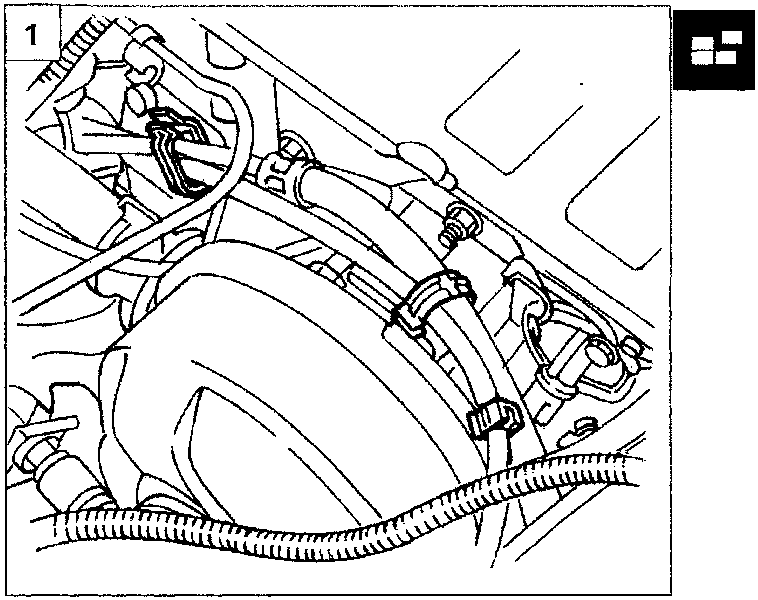

1. Release the pipes from the retaining bands located near the brake servo to facilitate the removal;

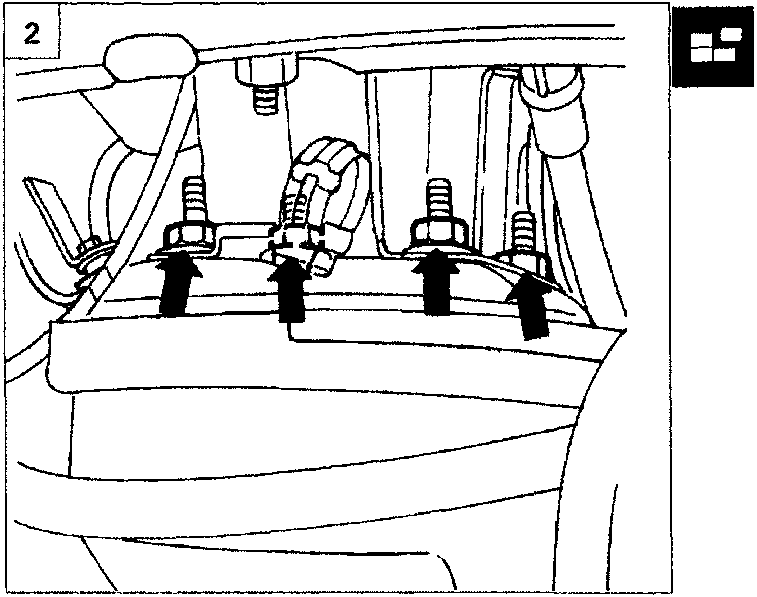

2. Undo the four nuts fixing the brake servo;

Refitting

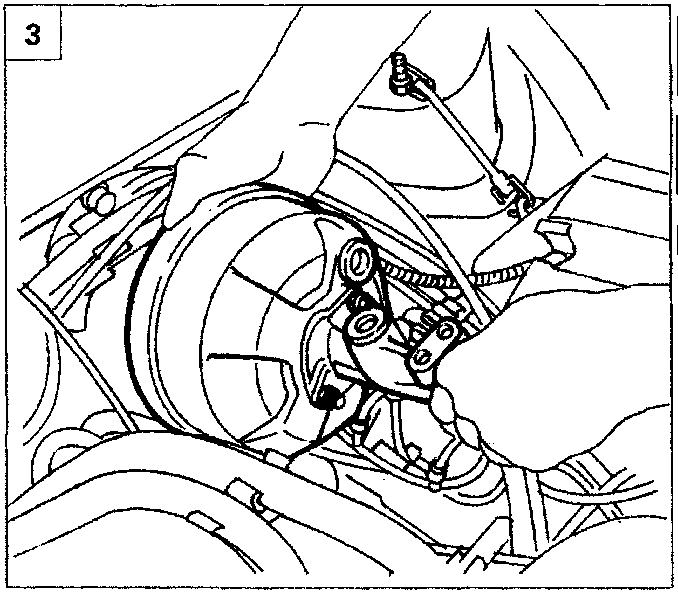

3. Remove the brake servo complete with master cylinder (brake pump).

NOTE To refit, reverse the order of the operations carried out for the removal, taking care to bleed the air from the system.
